Pro-6-LITE

AX3000 Wi-Fi6 Dual-Band Access Point

  • OFDMA and Uplink & Downlink MU-MIMO
  • 2.4 GHz Band up to 574 Mbps
  • 5 GHz Band up to 2402 Mbps
  • Range of up to 180 Meters

In Stock

Sku:Pro-6-LITE

฿3,790

Compare

Pro-6-LITE    Overview

Pro-6-Lite is a 2×2 Wi-Fi 6 access point which offers an up to 3 Gbps aggregate wireless rate with both the 2.4 GHz and 5 GHz bands. With the application of OFDMA, DL/UL MU-MIMO, and SR (Spatial Reuse), its system capacity has been greatly increased compared with that with 802.11ac. In addition, with the TWT technology, Pro-6-Lite can centrally schedule awakening and sleeping of clients, reducing client confilicts and unneccessary awakenings, and therefore can be used in densely-populated scenarios where large quantities of concurrent access are required.

3000Mbps high speed, 160MHz large bandwidth
HD video conferencing, free to connect anytime, anywhere

With a new generation of WiFi 6 technology, it supports a large 160MHz bandwidth with a concurrent wireless rate of up to 3000Mpbs, doubling the transmission performance compared to 80MHz bandwidth, and equipped with OFDMA, MU-MIMO and other technologies, 150 terminals can be accessed at the same time, and the network speed is still fast and smooth.
√ High speed √ Multiple concurrency
√ Low latency √ Low power consumption

High performance antennas with external independent FEMs
Easy wall penetration, full signal at every corner

2.4GHz/5GHz full band configured high power independent signal amplifier, built-in 4dBi high gain antennas, strong signal, easily penetrate the wall, even weak signal can be received , easily cover 400㎡. The reasonable layout of the antenna reduces interference from the same frequency, so that the Internet can be accessed even if you are at the edge of the range.

Small and compact, space-saving and easy to install
Flexible integration even in different decorations

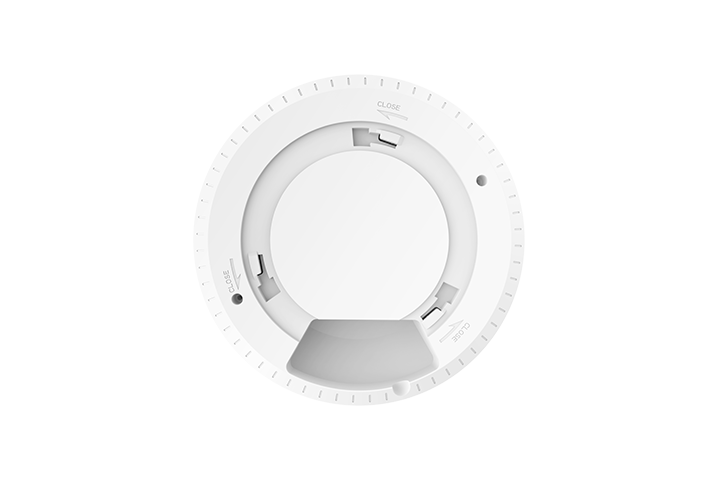

The 176*176*43.5mm size design is compact, elegant and stylish, which can perfectly fit into various scenes without destroying the decoration and can greatly save space. The hidden port design allows the network cable to be connected from the ceiling to the network port hidden at the back of the AP, making the wiring neat and simple.

Automatic RF optimization to reduce signal interference
Enjoy stable WiFi every time, every day

When there are overlapping frequency bands in the working channels of neighbouring APs, the power of one AP will cause signal interference to the neighbouring APs. Through the RF optimization function, the channel and power of APs can be planned automatically to intelligently reduce the signal interference between APs and ensure the high-speed operation of wireless network.

Intelligent load balancing
Ultra-low failure rate for better Internet experience

Supports inter-AP load balancing, for wireless user dense areas, Pro-6-LITE works with AP controller, based on the AP’s band capacity to do balancing, wireless terminals are assigned to different APs, balance the access load pressure, greatly ensure the stability of the AP and connection availability.

Seamless roaming at 50 ms
From upstairs to downstairs, automatically switch to the best WiFi

When moving within the coverage area, the Internet device automatically connects to the AP node with the best signal, with a switching latency as low as 50ms. Whether it’s a video conference or a voice call, you can walk freely and unrestrictedly, with seamless WiFi signal switching, having smooth and stable Internet speed as always.

Supports standard PoE power supply
Easy to install with only one network cable

Supports 802.3at standard PoE network cable power supply, no external power supply needed. One network cable can connect to the switch and gain PoE power supply and data transmission. Real plug and play, no need to consider the socket location, power cable alignment, etc., convenient wiring, flexible networking, more convenient installation.

Cloud platform/APP centralised management
Efficient and intelligent, easily reduce O&M costs

Supports unified deployment, configuration and management of equipment. Through ProFi Cloud Platform and ProFi APP, you can manage operation and maintenance anytime and anywhere, so you can easily grasp the whole situation without having to visit the site.

Product Information
Model Pro-6-LITE
Category Ceiling/Wall
Dimensions Φ176*43.5 mm
Hardware Specifications
Frequency band 2.4 GHz, 5 GHz
Wireless standards IEEE 802.11a/b/g/n/ac/ax
2.4 GHz data rate 1-574 Mbps
5 GHz data rate 6-2402 Mbps
Channel width 20 MHz/40 MHz/80 MHz/160 MHz
MU-MIMO 2X2 MU-MIMO
Ethernet port 1*10/100/1000 Mbps Ethernet Port (PoE)
Button 1*Reset
LED indicator RGB
Max. power consumption 14.04 W
Power supply standard IEEE 802.3at PoE
Concurrent clients 254
Antenna gain 2*4 dBi
Transmission Power CE:<20 dBm(2.4 GHZ, EIRP)    <23 dBm(5 GHZ, EIRP)
FCC:<26 dBm (2.4 GHz)  <26 dBm (5 GHz)
26+/1.5dBm
26+/1.5dBm
802.11b RX sensitivity -97 dBm
2.4 GHz 802.11n (MCS7) RX sensitivity -76 dBm
5 GHz 802.11a RX sensitivity -96 dBm
5 GHz 802.11n (MCS7) RX sensitivity -76 dBm
Software Specifications
Operating mode AP AP+client
Hide SSID Supported
Max. No. of SSID 2.4 GHz: 8 5 GHz: 4
OFDMA Supported
Beamforming Supported
TWT Supported
Fast Roaming Supported
802.11 k/v/r Supported
WEP Supported
WPA-PSK AES/TKIP
WPA2-PSK AES/TKIP
WPA3-ASE AES
WPA Supported
WPA2 Supported
Access control MAC address-based
Adjustable power transmit Supported
Frequency analysis Supported
AP isolation Supported
Connected clients control Supported
RSSI threshold Supported
VLAN tagging for SSID Supported
LED indicator control Supported
Diagnostics tool Ping, Traceroute
Scheduled reboot Supported
Reboot at specified interval Supported
System logs Supported
Firmware upgrade Supported
Reboot Supported
Reset Supported
Backup configuration Supported
Restore configuration Supported
Operating Environment
Default login IP address 192.168.0.254
Default user name admin
Default password admin
Operating temperature -10℃ – 40℃
Operating humidity (10% – 90%) RH, non-condensing
Storage temperature -30℃ – 70℃
Storage humidity (10% – 90%) RH, non-condensing
  • The data on the above pages are all from IP-COM’s internal laboratory, obtained in a specific test environment, and the actual use may be slightly different due to individual differences in products, software versions and environments. Please refer to the actual use.
  • The product pictures and screen contents on the above pages are for illustration only. The actual product effects (including but not limited to appearance, color, size) and screen display contents (including but not limited to background, UI, and pictures) may be slightly different. Please refer to The real thing shall prevail.
  • Due to the real-time changes of product batches and production and supply factors, in order to provide accurate product information, specifications, and product characteristics as much as possible, IP-COM may adjust and revise the text descriptions, picture effects, etc. on the above pages in real time, in order to match the actual situation. Product performance, specifications, indexes, parts and other information are matched.
  • If it is necessary to make the above modifications and adjustments, no special notice will be given.
