Aqara Single Switch Module T1 (No Neutral)

Compatibility

Aqara Single Switch Module T1 (No Neutral) is compatible with the following systems:


Aqara Single Switch Module T1 (No Neutral) – Small, but powerful single channel relay controller

The Aqara Single Switch Module T1 (No Neutral) is based on the secure and robust Zigbee 3.0 wireless protocol. It can control the on/off status of lights. With the Aqara Hub, it can realise functions such as app remote control and timing control. It can work with other Aqara smart devices to realise more smart scenes. HomeKit compatible when used with Aqara Hubs. Simple DIY smart home system. Requires Aqara Hub ( Hub E1, Aqara Hub M2, Aqara Camera Hub G2H Pro, Aqara Camera Hub 3  or Aqara Hub M1S Gen 2.)

Features:

• No Neutral Wire Required: Even if your wall box doesn’t have a neutral wire, the Aqara Single Switch Module T1 can be installed and used.
• Zigbee 3.0 Protocol: Enjoy the benefits of the fast, stable, & energy-efficient smart home technology.
• Choice of Hubs : Hub E1, Aqara Hub M2, Aqara Camera Hub G2H Pro, Aqara Camera Hub 3  or Aqara Hub M1S Gen 2
• Compact Size: Fits almost any wall box and can be connected to your existing wall switch or outlet.
• 2-Way Switch Support: Can be connected to your existing 2-way switches & make them smart
• Power Off Memory: You will be able to configure if you need the lights to turn on automatically after a power outage.
• Advanced Protection: With overheat protection, you can be sure your home is safe and secure.

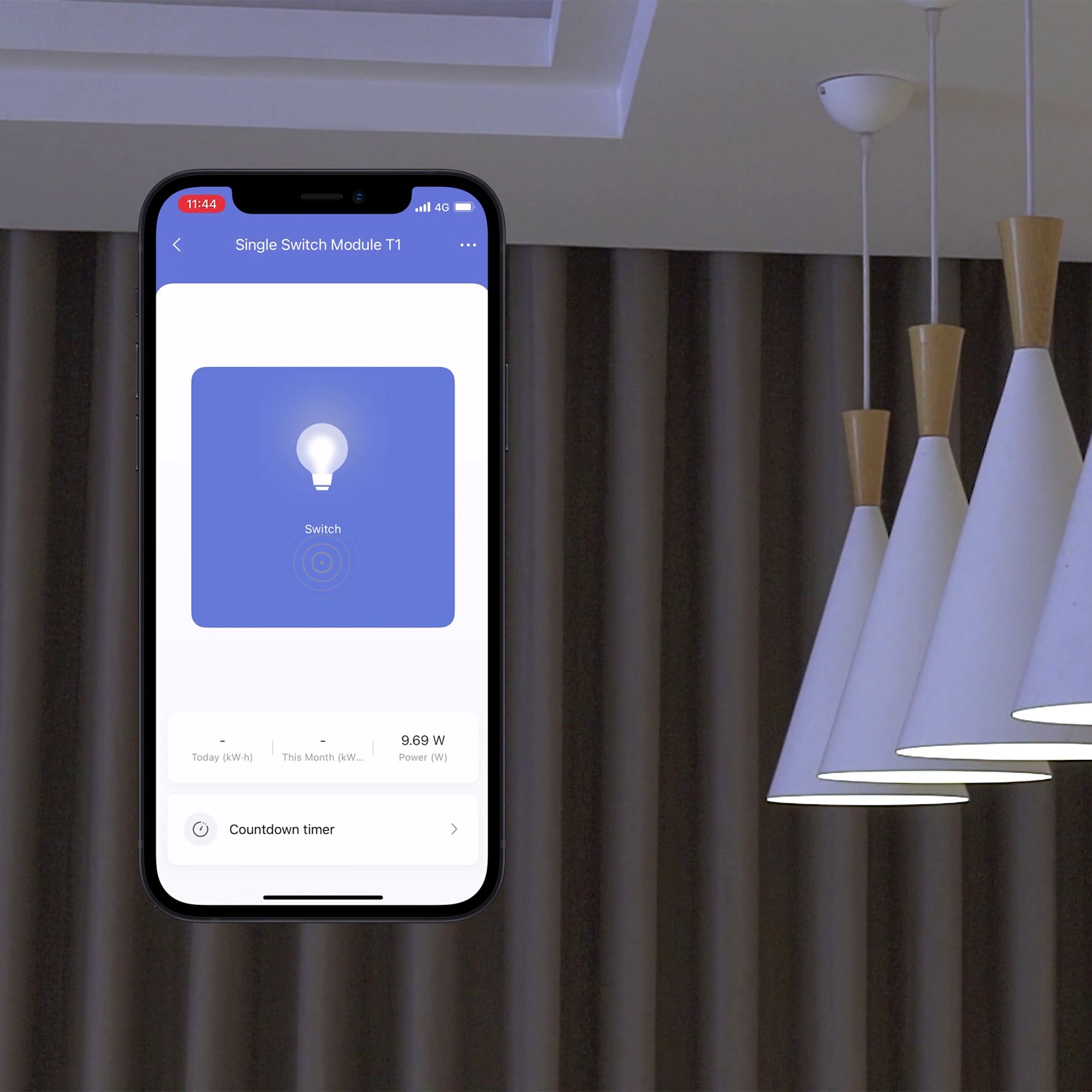

• Timers and Remote Control: Schedule the usage of your electric appliances, check the status, and control them remotely.
• All-Round Compatibility: Supports most popular voice assistants and ecosystems.

pecifications :

• MODEAL : SSM-U02
• Product Dimensions: 42.9×40×21.4 mm
• Product Color: White
• Net Weight (kg): 0.04
• Gross Weight (kg): 0.05
• Input Power: 100-250VAC,50/60Hz, μ
• Input Current: MAX 5A (resistive load)
• Rated Load: Min 3W, Max 1250W (resistive load), μ This product is only suitable for non-remote-control lights above 3W (typical value)
• Wireless Connection: Zigbee 3.0
• Wireless Standard: IEEE 802.15.4
• Wireless Frequency: 2.4GHz (2400～2483.5MHz)
• Receiver Sensitivity: -98dBm
• Effective Communication Distance: 30m (indoors)
• Operating Temperature: 0°C~ 35°C
• Operating Humidity: 5% ~ 95% RH, non-condensing
• Storage Temperature: -10°C~ 50°C
