Plug and Play
No configuration required, simply plug and play for easy use.
You’re allowed to add up to 16 devices using Ethernet cable to expand your wired network.
SW16

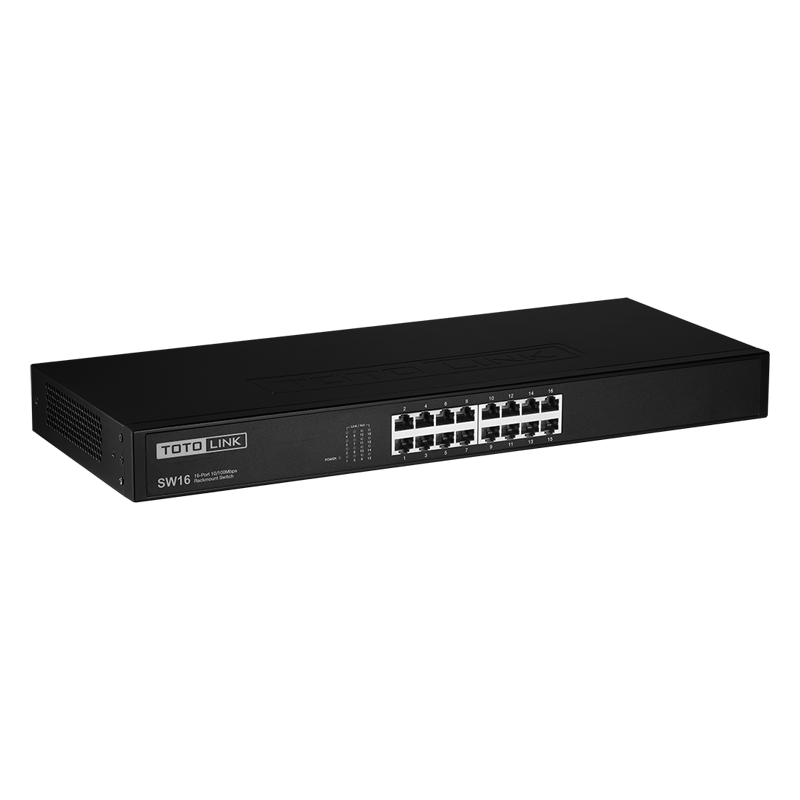

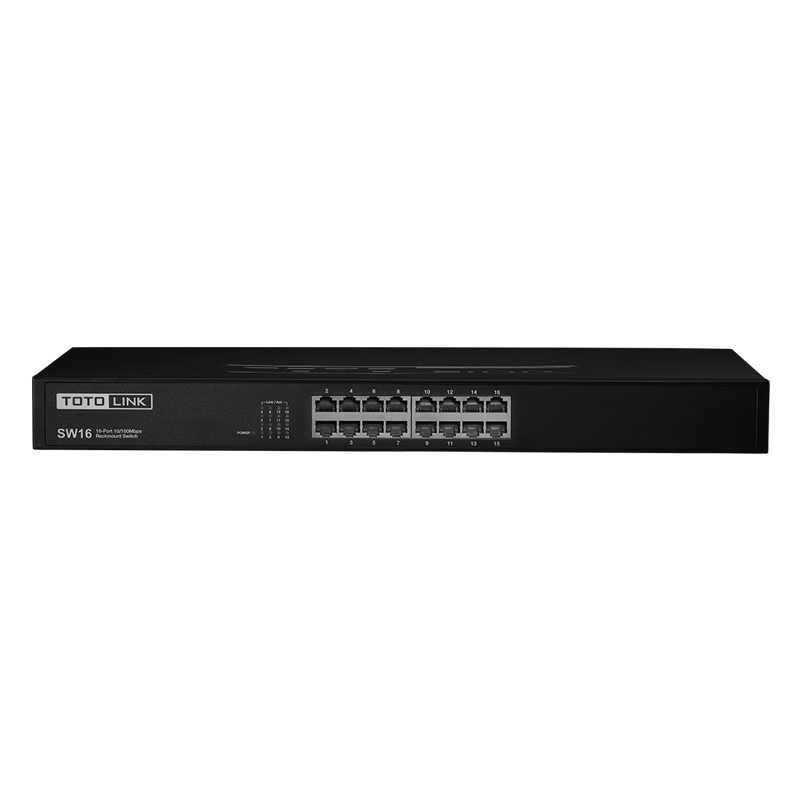

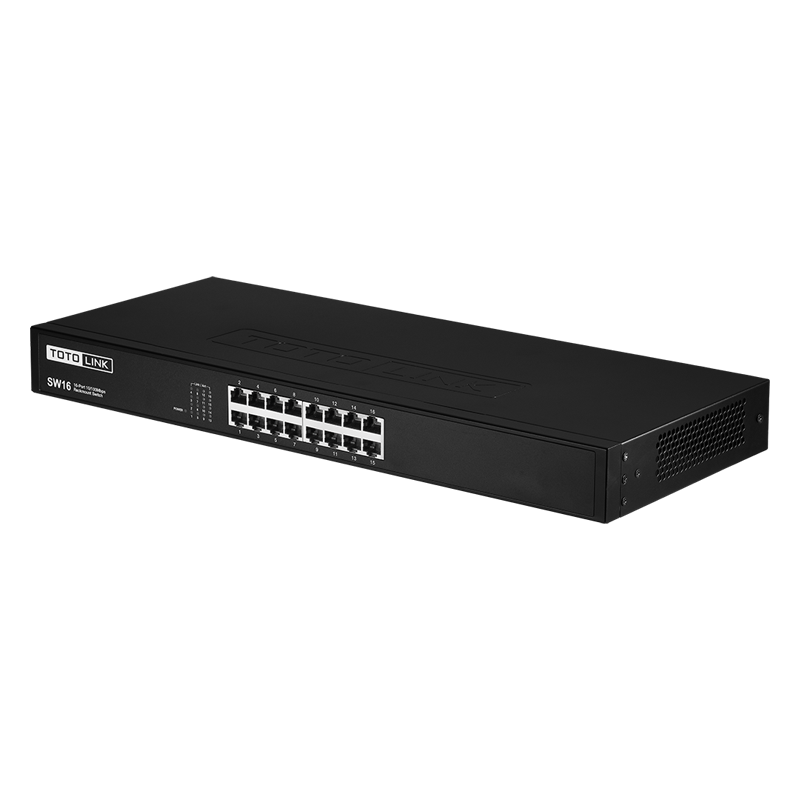

SW16 is a Fast Ethernet Switch that designed for general home or small office use.
It provides 16 10/100Mbps ports and all ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play.
Moreover, it can also be simply plugged into a server, a hub or a switch using straight cable or crossover cable.
| General | |
| Standards | – IEEE 802.3,
– IEEE 802.3u, – IEEE 802.3x |
| Interface | – 16*10/100Mbps auto-negotiation RJ-45 Ports (Auto MDI/MDIX) |
| Power Supply | – AC 100V~240V, 50/60Hz |
| LED | – 1*Power, 16*LANs |
| Dimensions(L x W x H) | – 440 x 180 x 44mm |
| MAC Address Learning | – Auto-learning, auto-aging |
| MAC Address Table | – 8K |
| Backup Bandwidth | – 3.2Gbps |
| Transfer Method | – Store-and-Forward |
| Network Media | – 10BASE-T: UTP Cat 3 or above cable
– 100BASE-TX: UTP Cat 5, 5e or above cable |
| Others | |||||
| Package Contents | – SW16 Rackmount Switch * 1
– Power Cable *1 – Rackmount Kit * 1 – Quick Installation Guide * 1 |
||||
| Environment | – Operating Temperature: 0℃~40 ℃ (32 ℉~104℉)
– Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉) – Operating Humidity: 10%~90% non-condensing – Storage Humidity: 5%~90% non-condensing |
||||
