Powerful Mainstream 11ax Wi-Fi 6 For Modern Businesses & IoT Usage
Noteworthy Benefits of 802.11ax, The Latest Emerging Wi-Fi 6
More Capacity
MU-MIMO allows devices to access same frequency bands at the same time to serve multiple users simultaneously and increase wireless capacity.
Faster Speed
2-antenna, 1024QAM and DBS design make data rate up to 1.8Gbps. You may enjoy watching videos and transmit bulk files without lag.
Further Range
Longer guard intervals have stronger capability to cope with multi-path interference to achieve farther distance outdoor such as stadium and outlet.
Better Efficiency
Designed to be more efficient for multiple users with varying bandwidth needs to be served simultaneously for wireless access in highly demand IoT environments.
HIGHLIGHTS
- 802.11ax High Speed Wi-Fi Dual-Band: IEEE 802.11ax concurrent dual-band with 1800Mbps (2.4GHz at 574Mbps and 5GHz at 1201Mbps).
- Efficient MU-MIMO: Serves multiple devices simultaneously to enhance connected devices capacity for data transmission.
- High Performance Wi-Fi: Beamforming with targeted, directional signals for better range and reliability. AirTime Fariness optimizes the Wi-Fi speed and eliminates Wi-Fi lag. Band steering balances channel utilization, enabling high capacity environment.
- Designed for High Density Mobile & IoT Usage: Supports up to 256 users simultaneously (100 users per band), ideal for BYOD (Bring Your Own Device) workplace.
- Reliable, Secure Wi-Fi: Reliable Wi-Fi access with WPA3 and WPA2-AES encryption supported for high level of security.
- Multiple SSIDs for Security Management: Supports up to 32 SSIDs (16 x 2.4GHz & 16 x 5GHz) ideal for multiple departments, groups, customers or guests.
- 802.11r/k Fast Roaming: Roams smoothly between APs without lag or interruption, ensuring top performance for video & voice streaming applications.
- Wide Coverage & High Sensitivity: Adjustable RF output power and high receiver sensitivity for wide coverage across large spaces.
- Power over Ethernet (PoE): Supports IEEE 802.3af PoE and includes a power jack for flexible power supply option.
- Built-In RADIUS Server: With management for up to 256 user accounts.
- Business Environments: Advanced choice for high-performance and high-density applications. Suitable for a wide range of commercial applications such as offices, hotels, meeting rooms, schools, campuses, resorts, retail and others.
APPLICATION DIAGRAM
SPECIFICATIONS
| HARDWARE | ||

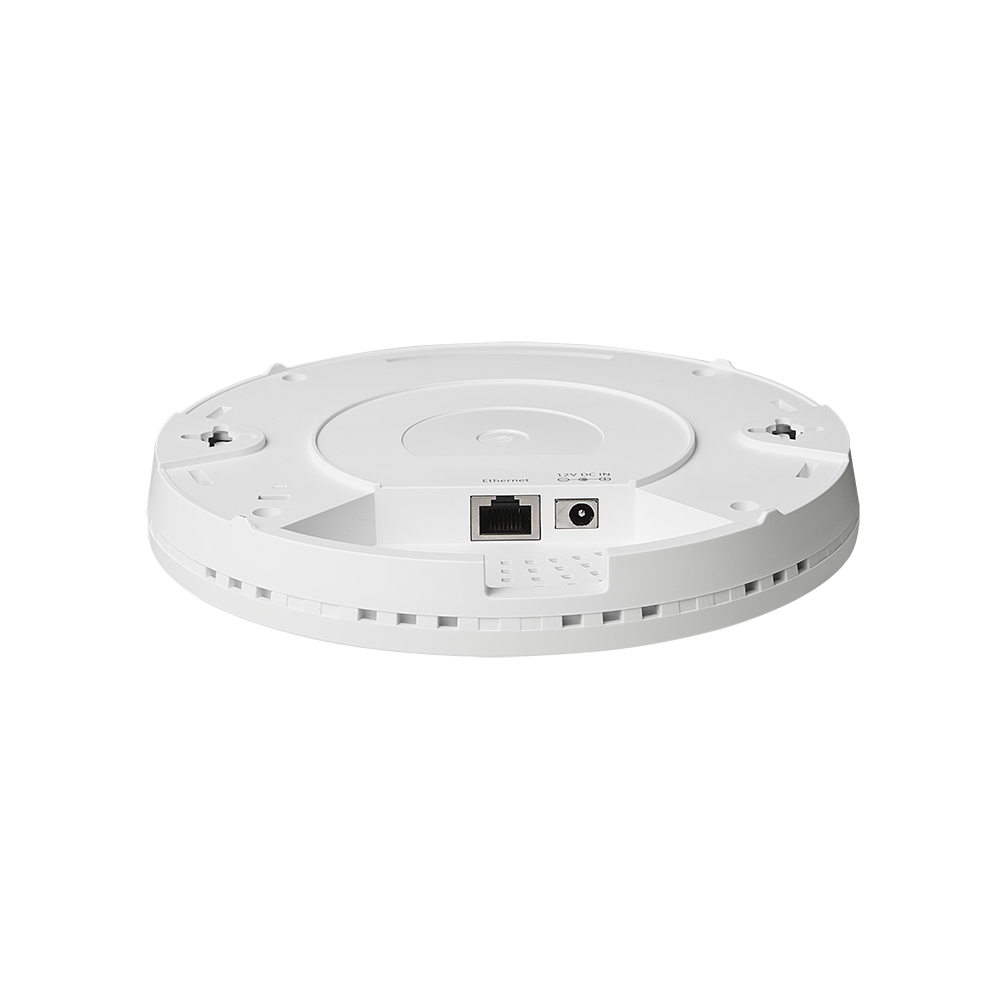

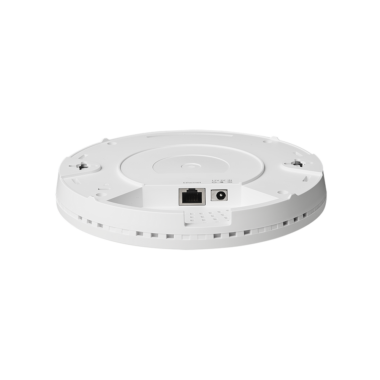

| Interface | 1 x RJ45 10/100/1000Mbps Ethernet Port (PoE in) | |
| Button | Reset button | |
| LED Indicator | •1 x LED ( Power and Diag ) | |
| Antenna | •Type: 2 x Built-In PIFA (2 dual-band antenna) •Gain: 2.2dBi (2.4GHz), 2.9dBi (5GHz) Max. |
|
| Power | •DC: 12V / 1A •802.3af (PoE Injector Optional) |
|
| Power Consumption | 12W (Full Loading) | |
| Power Saving | 802.3az | |
| Mounting | Ceiling | |
| Housing | UL94-5VB Flammability Rating | |
| Dimension | 176.29 (D) x 32.75 (H) mm | |
| Weight | 372g | |
| WIRELESS | ||
| Standard | IEEE 802.11 a/b/g/n/ac/ax | |
| Frequency Band | •2.4GHz: IEEE 802.11b/g/n/ax •5GHz: IEEE 802.11a/n/ac/ax * Subject to local regulations. |
|
| Maximum Data Speed | •2.4GHz: 574Mbps •5GHz: 1201Mbps |
|
| Operation Channels | •2.4GHz :
US/Canada 1-11; 2.412~2.462GHz
Europe 1-13; 2.412~2.472GHz •5GHz (Country dependent for the following ranges): US/Canada:
−Band 1: 36, 40, 44, 48; 5.180~5.240(GHz) −Band 4:149, 153, 157, 161, 165; 5.745~5.825(GHz) Europe: −Band 1: 36, 40, 44, 48; 5.180~5.240(GHz) |
|
| Maximum Transmit Power |
•802.11b
17dBm@1Mbps
17dBm@11Mbps •802.11g
17dBm@6Mbps
15dBm@54Mbps •802.11n (2.4GHz)
17dBm@MCS0(HT20)
15dBm@MCS7(HT20) 12dBm@MCS9(HT40) •802.11ax (2.4GHz)
9dBm@MCS11(HT40)
15dBm@MCS4/12 15dBm@MCS5/13 14dBm@MCS6/14 14dBm@MCS7/15 •802.11a
17dBm@6Mbps
16dBm@54Mbps •802.11n (5GHz)
17dBm@MCS0 (HT20)
15dBm@MCS7 (HT20) •802.11ac
17Bm@MCS0 (VHT80)
15dBm@MCS7 (VHT80) 14dBm@MCS9 (VHT80) •802.11ax (5GHz)
10dBm@MCS11 (HT80)
|
|
| Receiver Sensitivity |
•802.11b
≤-88dBm@1Mbps
≤-86dBm@11Mbps •802.11g
≤-88dBm@6Mbps
≤-71dBm@54Mbps •802.11n (2.4GHz)
≤-88dBm@MCS0
≤-68dBm@MCS7 ≤-60dBm@MCS9 •802.11ax (2.4GHz)
≤-53dBm@MCS11
•802.11a
≤-87dBm@6Mbp
≤-68dBm@54Mbps •802.11n (5GHz)
≤-87dBm@MCS0
≤-68dBm@MCS7 •802.11ac
≤ -56dBm@MCS9
•802.11ax (5GHz)
≤ -50dBm@MCS11
|
|
| Concurrent Clients | 200 (100 at 2.4GHz and 100 at 5GHz) | |
| No. of SSIDs | 32 (16 at 2.4GHz and 16 at 5GHz) | |
| Fast Roaming | Y (802.11 r/k) | |
| Band Steering | Y | |
| AirTime Fariness | Y | |
| Beamforming | Y | |
| SOFTWARE | ||
| Wireless Mode | AP / WDS AP / WDS Bridge | |
| 802.1q VLAN | Y (VID = 1-4095) | |
| Spanning Tree | Y (STP) | |
| QoS | WMM (802.11e WMM) | |
| Pass-Through | IPv6 and VPN (PPTP, L2TP/IPsec) | |
| DSCP (802.1p) | Y | |
| Multicast | Y (Multicast Rate up to 54Mbps) | |
| SECURITY | ||
| Security | WPA3/ WPA2 / WPA/ WEP/ 802.1X | |
| Wireless Client Isolation | Y | |
| IEEE 802.1x Authenticator | Y | |
| EAP Authentication | PEAP | |
| Hidden SSID | Y | |
| MAC Address Filter | Y | |
| Rogue AP Detection (with NMS) | Y | |
| MANAGEMENT | ||
| Deployment | •Standalone: AP mode •Master AP mode: Can manage 16 Edimax CAX1800 APs with NMS •Managed AP mode: Be managed by Edimax CAX1800 Master AP with NMS |
|
| Configuration | •HTTP / HTTPS •SNMP v1, v2c, v3 •CLI (Telnet, SSH) |
|
| RADIUS Server | Built-In | |
| Syslog | Y | |
| Ping/Traceroute Test | Y | |
| OTHERS | ||
| Certification | CE, FCC | |
| Environmental Condition | •Operating Temperature: 0°C~40°C (32°F~104°F) •Operating Humidity: 90% or Less |
|
| Package Content | •AX1800 Ceiling Mount PoE Access Point •Ceiling-Mount & T-rail Mount Bracket Kit •Ethernet Cable •Quick Installation Guide |
|
| Optional Accessory | GP-101IT IEEE802.3at PoE Injector | |
*Maximum performance, actual data rates, and coverage will vary depending on network conditions and environmental factors.
*Actual viewing resolution and frame rate of network cameras depend on connection speed.
*Product specifications and design are subject to change without notice.
*Actual viewing resolution and frame rate of network cameras depend on connection speed.
*Product specifications and design are subject to change without notice.
