10 Gigabit Ethernet PCI Express Server Adapter

EN-9320TX-E V2

  • Supports PCI Express 2.0/3.0 x16 host bus interface
  • 10 Gigabit throughput with 100-meter UTP cable
  • Backward compatible with 1000Base-T, 100Base-TX network
  • 16K jumbo frames
  • IP, TCP, UDP checksum offloading
  • Reduced CPU utilization and improved through
  • Supports IEEE 802.1Q VLAN ID tagging and IEEE 802.1q QoS

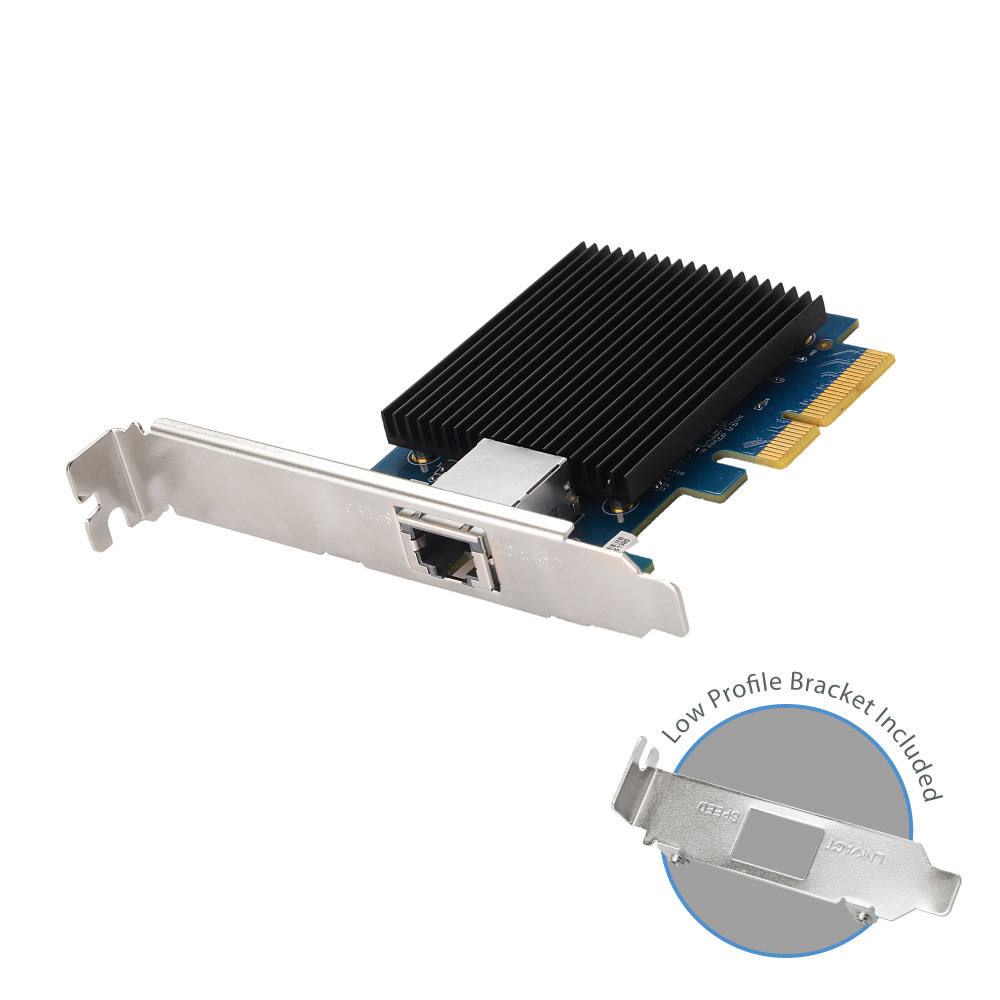

  • Low profile bracket included

สินค้ารับประกันตลอดอายุการใช้งาน

Out of stock

Sku:EN-9320TX-E

฿3,790

Out of stock

Compare

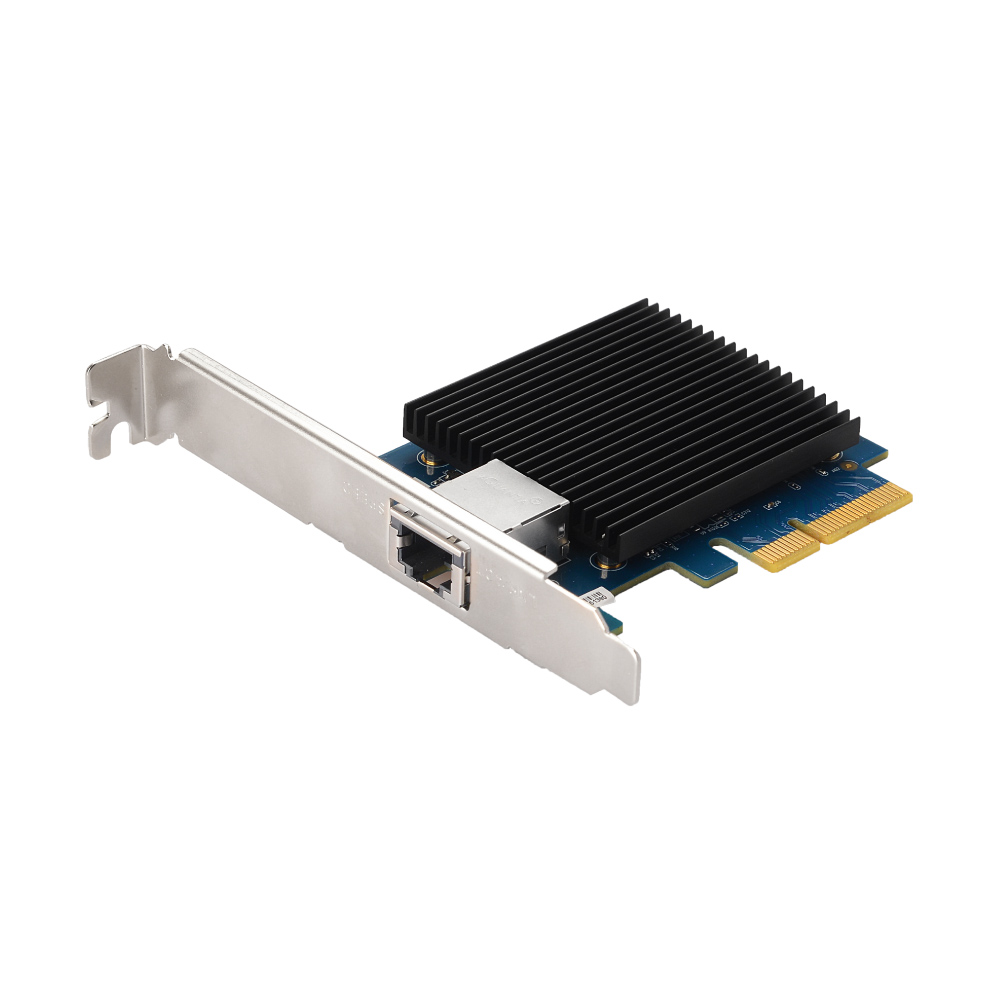

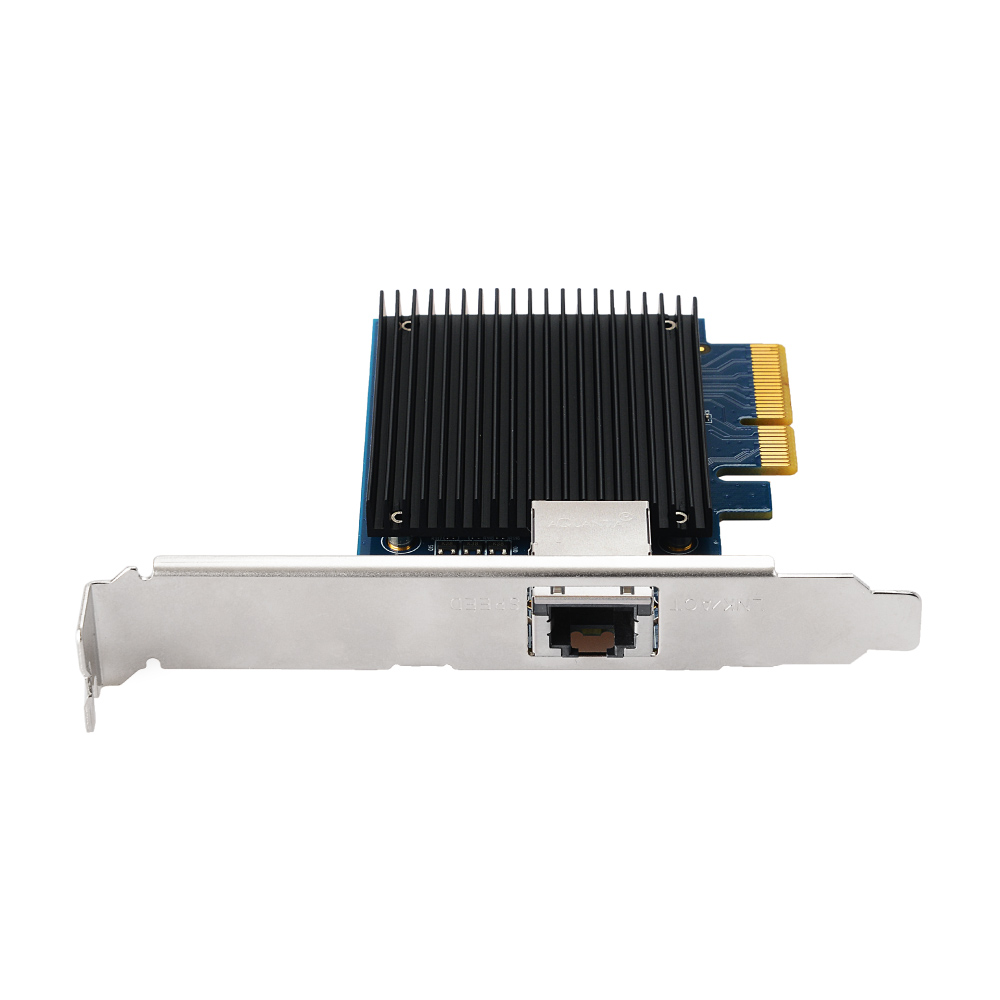

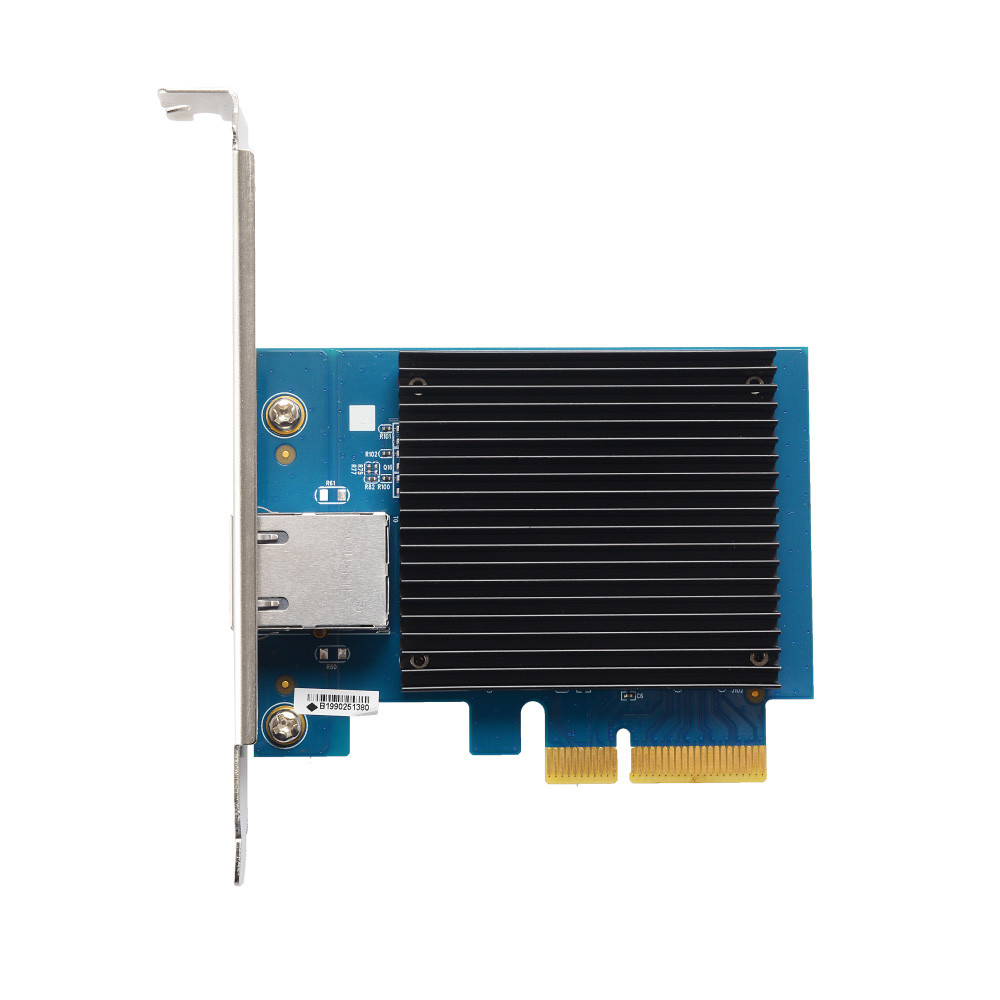

The EN-9320TX-E V2 is a 10 Gigabit Ethernet PCI Express Server Adapter designed for the high-speed PCI Express bus architecture. This meets the high-performance requirements such as large file transfers and HD video editing, which utilizes a high-performance shared storage system to have improved server efficiency and network performance. Connecting the EN-9320TX-E V2 with the RJ45 cable, your system instantly upgraded to superior performance in fast and reliable10Gbps high-speed.



Ultra-Fast 10Gbps Ethernet Networking

With 10GBase-T (10G ) networking technology, the EN-9320TX-E V2 can provide up to 10Gbps network speed, 10 times faster performance than standard Gigabit Ethernet transmissions.




Prioritize Bandwidth for Experiencing the Best

The built-in Quality-of-Service (QoS) technology lets you prioritize applications for a smooth connection experience. With the EN-9320TX-E V2, you can enjoy latency-free traffic for gaming, video conferencing, or media streaming with ease.






Easy Migration 10GbE Adapter

Equipped with a 10 Gigabit RJ45 interface, the EN-9320TW-E V2 is not only a cost-effective solution of 10 Gbps high-speed adapter on 10G Gigabit network, but it also offers full compatibility to 10/5/2.5/1Gbps and 100 Mbps networking standards and readily available copper network.




High Performance with Advanced Features

With the benefits of low-latency, high throughput, and cost-effective, the EN-9320TX-E V2 meets the bandwidth-intensive requirements such as large fil transfers, HD video editing, and online gaming, while utilizes high-performance speeds and shared storage system to have improved server efficiency and network performance.




SPECIFICATIONS

HARDWARE  ​
Interface PCI Express 2.0/3.0 x16 host bus interface
RJ-45 10G, 5G, 2.5G, 1G and 100Mbps LAN Port
LED Indicator SPEED, LNK/ACT
Power Consumption 4.05W
Dimension & Weight 86.95 (W) x 67.9 (D) x 1.6 (H) mm , 78.4g
PERFORMANCE & FEATURE
Jumbo Frame 16K Bytes
Maximum Data Speed 10Gbps, 5Gbps, 2.5Gbps, 1Gbps or 100Mbps
Additional Feature
  • Full Duplex Mode: Up to 20Gbps, 10Gbps, 5Gbps, 2Gbps or 200Mbps
  • 802.3x Flow Control for traffic management
  • IPv4, IPv6/TCP and IPv6/UDP checksum offload
  • IPv4/v6 IP, TCP, UDP segmentation Task-offload
  • Protocol offload (ARP & NS)
  • Quality of Service (QoS)
NETWORK STANDARD & OS
Standard
  • IEEE 802.3an: 10GBase-T 10 Gigabit Ethernet
  • IEEE 802.3ab 1000Base-T Gigabit Ethernet
  • IEEE 802.3u 100Base-TX Fast Ethernet
  • IEEE 802.3bz NBASE-T
  • IEEE 802.3az Energy Efficient Ethernet
  • IEEE 802.1p Priority Queuing
  • IEEE 802.3x: Flow Control and Back Pressure
  • IEEE 802.1Q Tagged VLAN support
  • IEEE 802.1Qav, AVB (Audio Video Bridging)
  • IEEE 1588 v2 PTP (Precision Time Protocol)
OS Compatibility
  • Windows 7/8/8.1/10 (32/64-bit)
  • Linux Kernel 4.4, 4.8, 4.9
OTHERS
Certification CE, FCC, IC, RCM
Environmental Condition
  • Operating Temperature: 32~122°F (0~50°C)
  • Storage Temperature: -40~185°F (-40~85°C)
Package Content
  • 10 Gigabit Ethernet PCI Express Server Adapter
  • Low Profile Bracket
  • Quick Installation Guide

*Maximum performance, actual data rates, and coverage will vary depending on network conditions and environmental factors.

*Actual viewing resolution and frame rate of network cameras depend on connection speed.
*Product specifications and design are subject to change without notice.
