Name: IP-COM G3326P-24-410W 24GE+2SFP Cloud Managed PoE Switch
SKU: G3326P-24-410W
Price: 11500 THB
Availability: OutOfStock

G3326P-24-410W

24GE+2SFP Cloud Managed PoE Switch

Compliance with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z, IEEE 802.1p/q/w/d, and IEEE 802.3af/at standards
24 x 10/100/1000 Base-T Ethernet ports (Data/Power) 2 x 100/1000 Base-X SFP ports
8K MAC address and MAC address automatic learning
IEEE 802.3x full-duplex flow control and half-duplex backpressure flow control
Non-blocking line-rate forwarding for all ports
Maximum output power of a single PoE port: 30W Maximum output power of the whole switch: 370W
IEEE 802.1Q VLAN Link aggregation QoS MAC address binding
Supports App management and visualized local managementnt

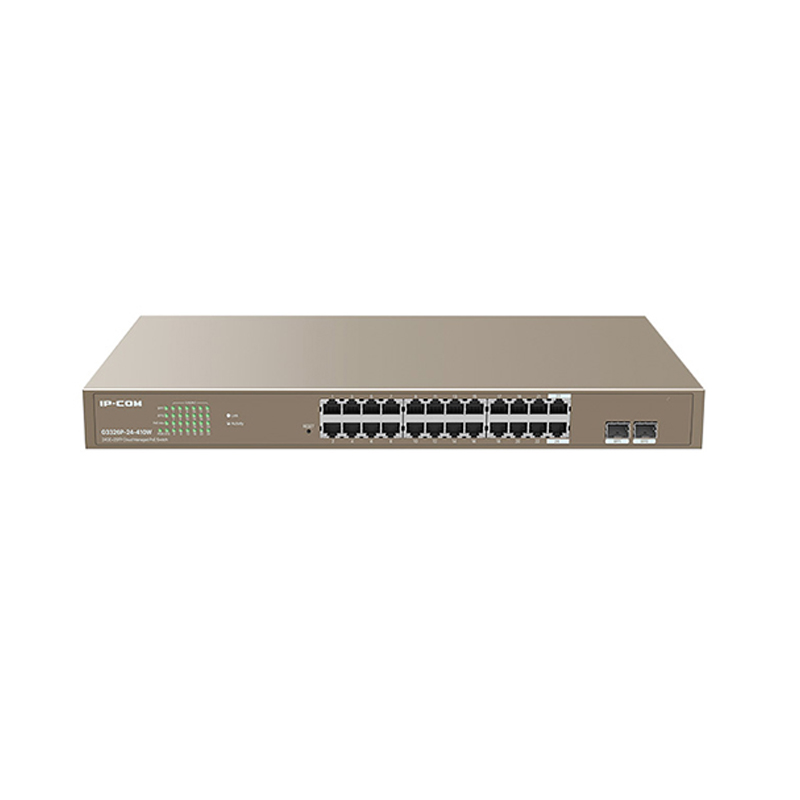

G3326P-24-410W Overview

G3326P-24-410W is a smart cloud management PoE switch designed by IP-COM. It provides 24 gigabit PoE ports and 2 SFP ports, supports IEEE 802.3af/at standards, and can smartly identify powered devices. The maximum output power of a single port is 30W and the power of the whole switch is 410W. It supports IMS Cloud, web UI, and IP-COM IMS app management, making network maintenance more efficient, after-sales cost lower, and management and configuration simpler. It is an ideal choice for video surveillance and wireless networking in such scenarios as small and medium-sized enterprises, hotels, schools, and parks.

Cloud management

Supports remote management through IP-COM ProFi Cloud web UI and ProFi App, adding devices in batches through QR codes for cloud management, as well as the configuration of VLAN, DHCP snooping, loop guard on ProFi App, realizing easy operation and maintenance.

Smart PoE power supply

The 24 IEEE 802.3af/at gigabit PoE ports, the maximum 370W power output of the whole switch, the maximum 30W power output of a single port all guarantee a stable power supply and data transmission for such devices as HD PoE IP cameras and APs.

Various layer-2 management features

The 250-meter power supply distance, and such smart management functions as QVLAN, link aggregation, QoS, and MAC address binding make construction easier and faster, reducing investment to the greatest extent

Hardware specifications
Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z, IEEE 802.1p, IEEE 802.1q, IEEE 802.1w, IEEE 802.1d, IEEE 802.3af, IEEE 802.3at
LED indicators	1 Link/Ack LED indicator for each port 1 PoE Max LED indicator for each device 1 Power LED indicator for each device 1 SYS LED indicator for each device
Interfaces	24 x 10/100/1000 Base-T Ethernet ports (Data/Power) 2 x 100/1000 Base-X SFP ports
Port Lightning Protection	≥6KV
Forwarding mode	Store-and-forward
Switching capability	48 Gbps
Packet forwarding rate	35.7 Mpps
MAC address table	8K
PoE Power Supply	Ports 1 to 16 support 802.3af/at standard 1 2 4 5 +, 3 6 7 8 –
Input voltage	100-240V～ 50/60Hz
Dimensions(LWH)	440 mm * 284 mm * 44 mm
Whole Switch Power Consumption	Whole switch power consumption: <410W; Maximum PoE output power: 370W
Operating environment	Operating temperature: 0°C – 45℃ Storage temperature: -40°C – 70°C Operating humidity: (10% – 90%)RH, non-condensing Storage humidity: (5% – 90%)RH, non-condensing
Software specifications
PoE Power Supply Management	Port PoE configuration and power supply priority configuration supported PoE over-temperature protection supported Smart graphical management and PoE-powered device detection supported (port status, power assignment, and PoE-powered device status)
Security Features	MAC address binding supported
VLAN	IEEE 802.1Q VLAN supported
Port aggregation	Static aggregation supported Dynamic aggregation supported
Spanning tree	IEEE 802.1w RSTP (Rapid Spanning Tree Protocol) supported
Port Mirroring	N: 1 port mirroring supported
QoS	FIFO (First-In, First-Out) supported SP (Strict Priority) supported WP (Weighted Priority) supported
Loading & Upgrade	HTTP upgrade supported Configuration import and export supported
Cloud management	Supports configuration delivery from IMS cloud platform Supports log reporting and fault detection Supports remote maintenance: reboot, backup, upgrade
Local visualization management	Supports router, switch, AP, IP camera discovery Supports automatic generation of topology Supports online/offline status detection for devices Supports remotely rebooting the IP camera
Certificates	CCC, FCC, CE, RoHS

The data on the above pages are all from IP-COM’s internal laboratory, obtained in a specific test environment, and the actual use may be slightly different due to individual differences in products, software versions and environments. Please refer to the actual use.
The product pictures and screen contents on the above pages are for illustration only. The actual product effects (including but not limited to appearance, color, size) and screen display contents (including but not limited to background, UI, and pictures) may be slightly different. Please refer to The real thing shall prevail.
Due to the real-time changes of product batches and production and supply factors, in order to provide accurate product information, specifications, and product characteristics as much as possible, IP-COM may adjust and revise the text descriptions, picture effects, etc. on the above pages in real time, in order to match the actual situation. Product performance, specifications, indexes, parts and other information are matched.
If it is necessary to make the above modifications and adjustments, no special notice will be given.

G3326P-24-410W Datasheet
