POWERFUL AV SWITCHES
MADE SIMPLE
Pre-configured to get you up and running faster
-
Groundbreaking AV GUI
A simplified user interface makes it easy to assign configuration profiles to each port.
-
Multicast in an Instant
NETGEAR IGMP Plus™ provides multicast functionality right out of the box for most AV over IP applications.
-
Sleek, Quiet Design

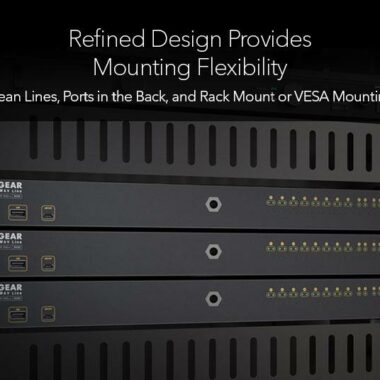

Less fan noise, and mounting ears included for under-table or wall mounting.
-
Automatic Configuration
Auto-trunk and auto-LAG functionality auto connects with other M4250 (and M4300) switches.
FAST, EASY
CONFIGURATION
FOR AV PROS

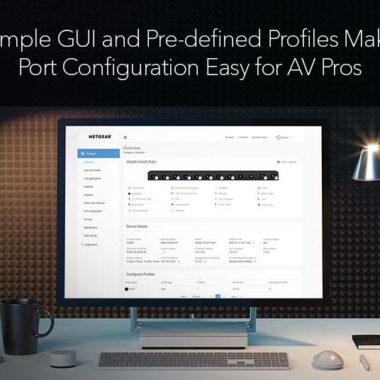

A streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.
FOCUS ON THE EVENT
NOT FAN NOISE
Most models have quiet mode which greatly reduces fan noise, and some models are even fanless.
DESIGNED FOR
AV OVER IP
RIGHT OUT OF
THE BOX
With built-in NETGEAR IGMP Plus™, there’s little-to-no setup required for flawless Video over IP delivery. Enable multicasting right out of the box.
-

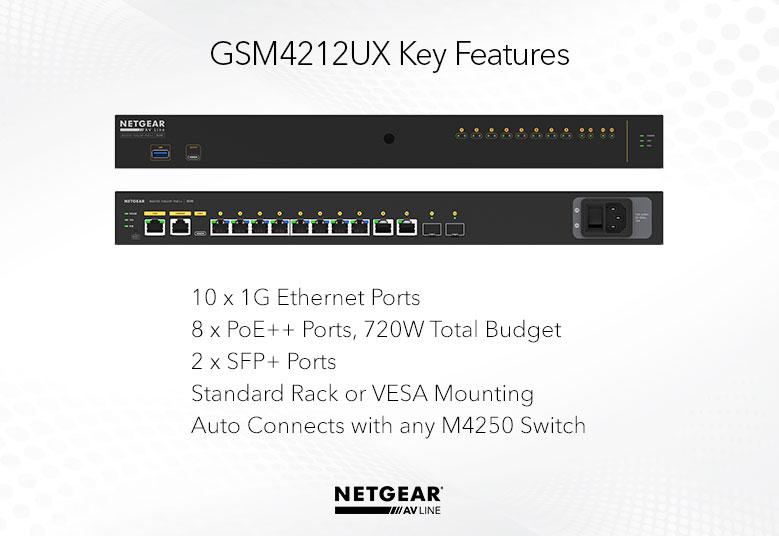

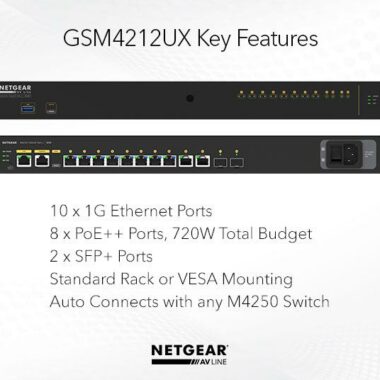

- Primary Port Speed : 1 Gigabit

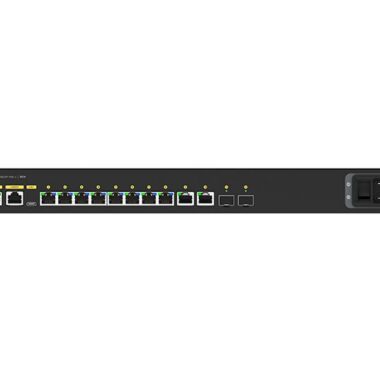

- Number of Ports : 12 (10x 1G, 2x SFP)
- PoE Ports / Budget : 8 PoE++ (90W/port), 720W Budget
- IGMP Support : Enhanced (NETGEAR IGMP Plus™)
- Jumbo Frame Support : Yes, up to 12kb
- Acoustics : Fanless or 50.5dB@25ºC
- Power Consumption : With PoE: 837.7W/2859.91Btu/hr; Without PoE: 26.3W/89.79Btu/hr; Standby without any port connection: 18W/61.45Btu/hr
- AVB Support : Yes. Electronic license required, activation key sent via email (AVB4212UX-10000S)
Third party support : Domotz
- Dimensions (WxDxH) : 440 x 200 x 43.2mm
- Weight : 3.83Kg (8.44lb)

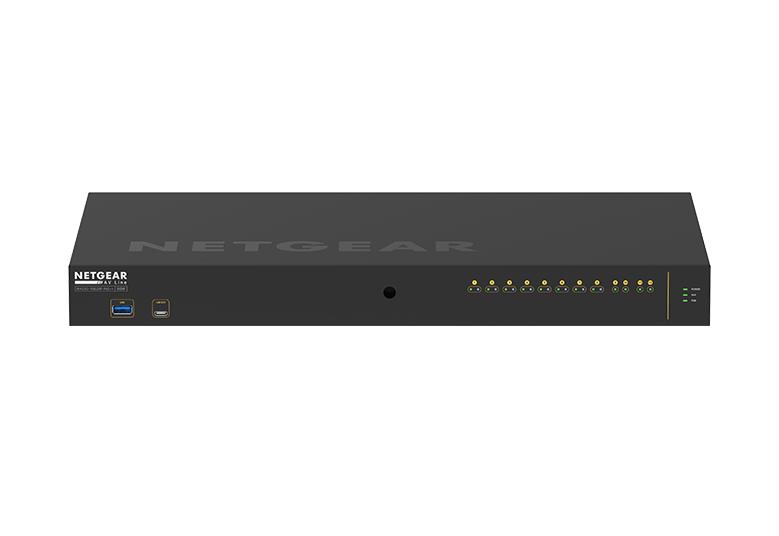

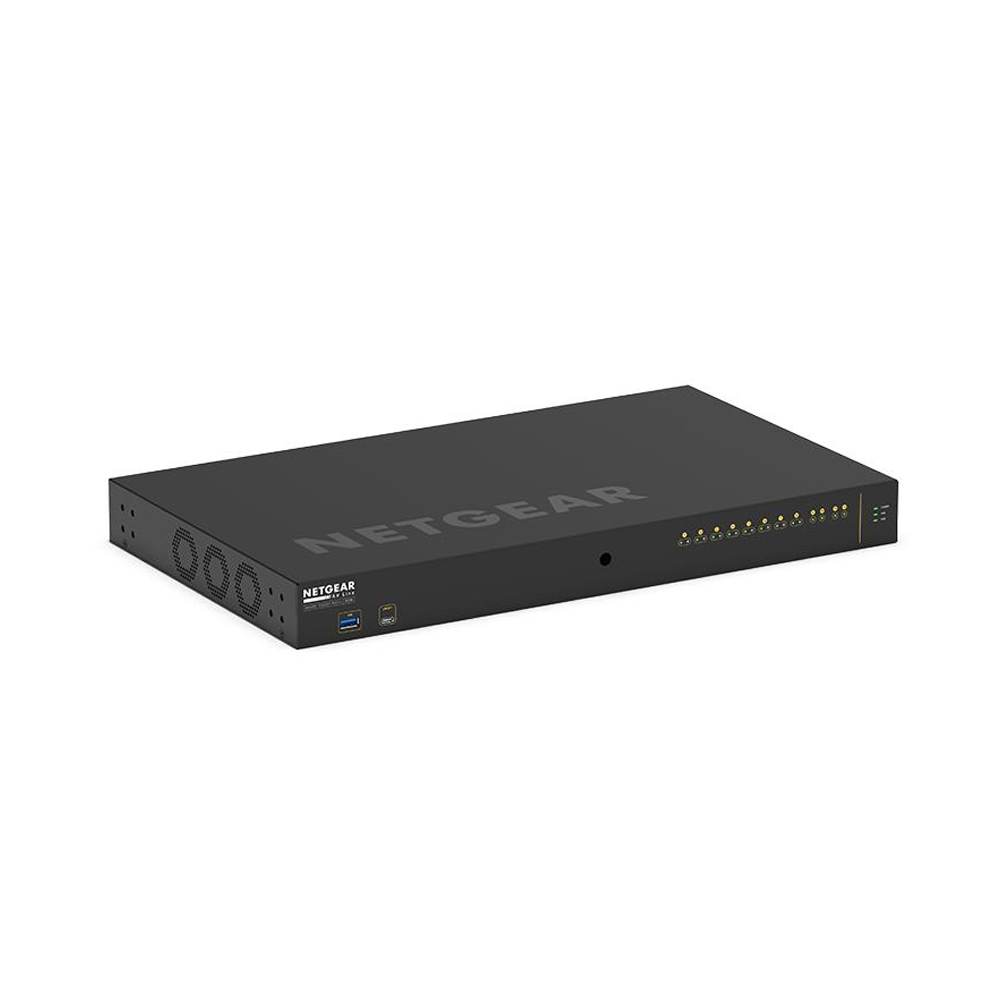

- What’s in the Box : M4250-10G2XF-PoE++ (GSM4212UX)
- Power cord(s)
- Console USB Type-C and RJ45-DB9 cables
- Rack-mounting standard brackets
- Longer brackets for recessed mounting
- Rubber footpads for tabletop installation
- Installation guide
