Details

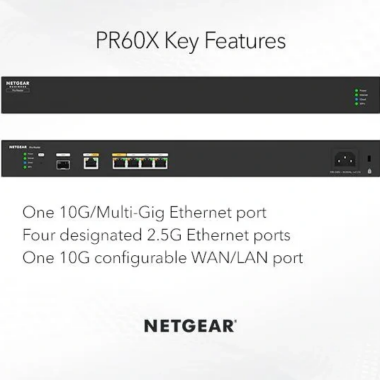

- 10G/Multi-Gigabit and 2.5G Dual WAN ports with failover
- High performance hardware with one 10G/Multi-Gig Ethernet port, four 2.5G Ethernet ports and one 10G SFP+ port for long-distance backhaul.

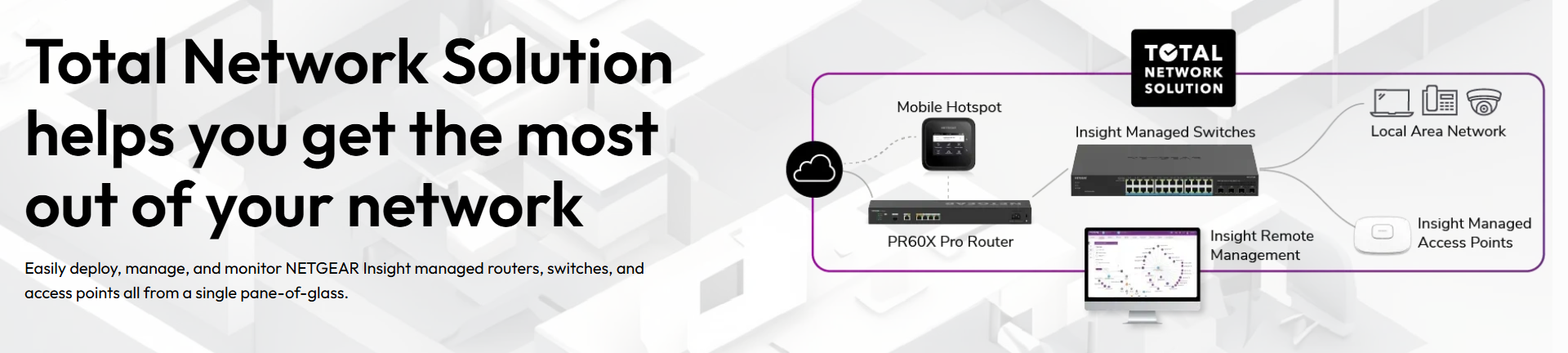

- Seamless integration with NETGEAR Pro WiFi Access Points and select Smart switches through NETGEAR Insight Cloud Management
- Control, manage and monitor through NETGEAR Insight
- Rack-mountable for placement in industry-standard enclosures
- Firewall protection
- IPSec configuration to create secure site-to-site VPN connections
- Add advanced threat prevention, web and DNS security with a simple license add-on.
- Turn your PR60X into a comprehensive security gateway with no separate hardware required.
TECHNICAL DETAILS
| Width | 440mm |
| Depth | 100mm |
| Height | 43.2mm |
| Weight | 3.34lb (1.513kg) |
| Hardware | Quad Core ARM A73 @ 2.2 GHz, 2GB DDR4, Flash Memory 4GB eMMC |
| Connectivity | 1 x 10G/Multi-gigabit Copper (Configurable LAN/WAN)
1 x 2.5G/1G RJ-45 (WAN) 3 x 2.5G/1G RJ-45 (LAN) 1 x 10G/1G SFP+ (LAN) |
| Performance | LAN-WAN Throughput: 2.4Gbps for 2.5G WAN port. 9.4Gbps for 10G WAN port
WAN-LAN Throughput: 10Gbps max WAN with 17.5Gbps max LAN, when using WAN2 port. 2.5Gbps max WAN with 27.5Gbps max LAN, when using WAN1 port only |
| LAN/VLAN | Maximum Number of VLANs is 8
DHCP Server (limit is 32) 802.1Q VLAN |
| Security | Firewall Traffic Rules/Scheduling, Port Forwarding, Port Triggering, Stateful Packet Inspection (SPI), Port/Service Blocking, Denial-of-service (DoS) Prevention, Stealth Mode, Block TCP Flood, Block UDP Flood, Respond To Ping on Internet Port |
| VoIP SIP ALG | Yes |
| Networking | ISP Address Assignment DHCP, Static IP Assignment, PPPoE, NAT, Static Routing, Routing Protocol (RIPv1, RIPv2), MAC Address Cloning/spoofing, NTP Support, UPnP, Auto Uplink on Switch Ports |
| VPN | IPSec Site-to-Site |
| Encryption/Authentication | 3DES, AES (128, 192, 256 bit)/SHA-1, SHA-2 (256bit), MD5 |
| Key Exchange | IKEv1, IKEv2, Pre-shared Key |
| Management Options | Insight Remote Cloud Management
Web GUI |
| Logging | Accepted Packets, Dropped Packets Statistics, System, Source MAC filter, Session Limit, Bandwidth Limit, Ipsec VPN, Log Delivery Insight logging, Diagnostics Ping, DNS Lookup, Trace Route, Speed test, Maintenance Save/restore Configuration, Restore to Factory Defaults, Firmware Upgrades, Display and monitor Statistics |
| Major Regulatory Compliance Environment | RoHS |
| Safety | CE/LVD, CSA |
| EMI | FCC Part 15 Class B, CE mark |
| Operating Temperature | 0° to 40°C (32° to 104° F) |
| Storage Temperature | -20° to 70° C (-4° to 158° F) |
| Humidity | Operating humidity 90% maximum relative humidity, non-condensing,
Storage humidity 95% maximum relative humidity, non-condensing |
| Power | AC 100-240V, 50/60Hz, 1.3A
Electrical Specifications Power adapter input localized to regions |
WHAT’S INCLUDED
| NETGEAR PR60X 10G/Multi-Gigabit Dual WAN Pro Router with Insight Cloud Management | |
| Rack-mount kit | |
| Rubber feet (for Desktop deployment) | |
| Power cord(s) (varies by region) | |
| Ethernet cable | |
| Installation guide |
