Netgear XSM4324CS M4300-24X 24x10G and 4xSFP+ (shared) Managed Switch

Technical Specifications

Hardware Features

• Hardware Specifications : Model Number: XSM4324CS

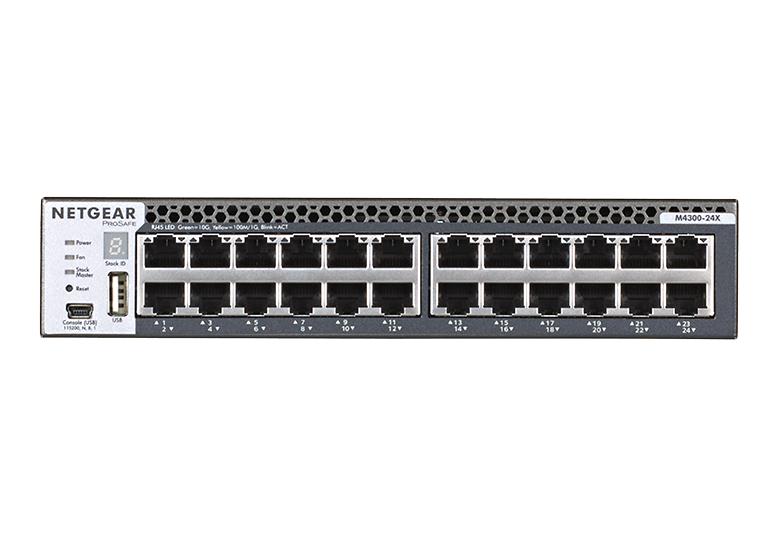

• Ports: 24 Ports Copper 100M / 1G / 10G. 4 Ports SFP+ 1G / 10G (shared)
• 1 Modular Bay with One (1) 250W Modular PSU included APS250W
• 480 Gps Switching Fabric
• Fixed Fan Front-to-Back 37dB

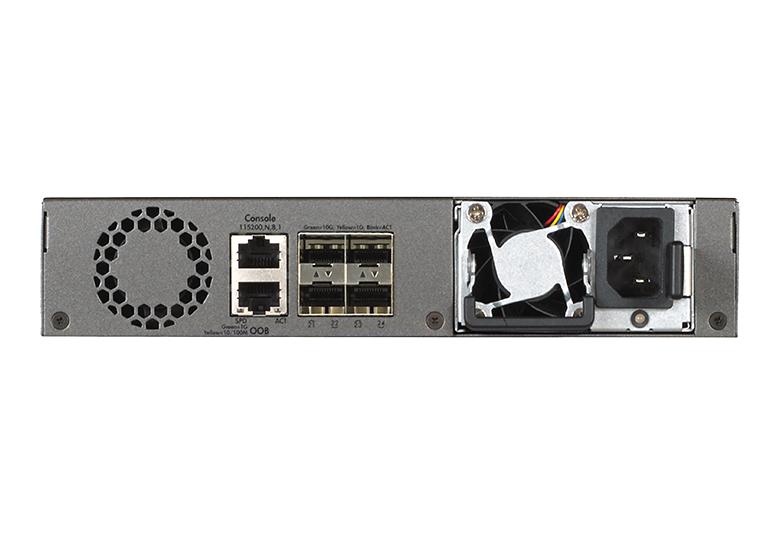

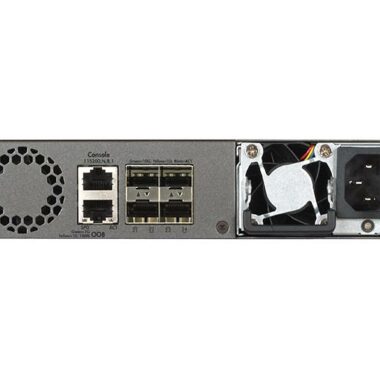

• Management Options : Ethernet: Out-of-band 1G port (Back)
• Console: RJ45 RS232 (Back). Mini-USB (Front)
• Storage: USB (Front)
• Single-pane-of-glass NMS300 management platform with mass-configuration support
• Dual firmware image and configuration file for updates with minimum service interruption

Software Features

• Table Sizes : 128K MAC 8k ARP / NDP
• Up to 960 Gbps
• Throughput up to 714 Mpps
• Application Static Routing- 64v4 / 64v6 RIP: 512 OSPF: 512
• Latency : <0.9µs 10G SFP+
• <1.25µs 10G RJ45
• IP Multicast : 1,024 IPv4 / 512 IPv6
• Multicast IGMP Membership : 2k IPv4 / IPv6
• M4300 Series features : License-free L2 and Layer 3, Layer 4 with Policy Based Routing, RIP, VRRP, OSPF and PIM
• VLANS: 4k with 2K DHCP Server Leases, IPv4: 256 Pools / IPV6: 16 Pools
• Mix-and-match Stackable Managed Switch Platform with nonstop forwarding and failover on all 1Gb to 10Gb models
• Pre-configured for AV-over-IP L2 Multicast on all models 10G models (SDVoE Ready)
