POWER AND
THROUGHPUT
Edge to core flexible platform, from 1 Gigabit to 100 Gigabit, good for projects of all sizes.
Groundbreaking AV GUI
A simplified user interface makes it easy to assign configuration profiles to each port.
Multicast in an Instant
NETGEAR IGMP Plus™ provides multicast functionality right out of the box for most AV over IP applications.
Sleek, Quiet Design
Less fan noise, and mounting ears included for rack mounting.
Automatic Configuration
Auto-trunk and auto-LAG functionality auto connects with other M4350 (and M4250) switches.
FAST, EASY
CONFIGURATION
FOR AV PROS
A streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.
FOCUS ON THE EVENT
NOT FAN NOISE
Most models have quiet mode which greatly reduces fan noise.
DESIGNED FOR AV OVER IP RIGHT OUT OF THE BOX
With built-in NETGEAR IGMP Plus™, there’s little-to-no setup required for flawless audio and video delivery. Enable multicasting right out of the box.
MAXIMIZE PERFORMANCE WITH PRO WIFI ACCESS POINTS
Enable powerful, reliable WiFi at your location with Pro WiFi access points, powered by PoE or an external power adapter.
|
|
Width |
440mm |
|
|
Depth |
400mm |
|
|
Height |
43.2mm |
|
|
Weight |
7.38Kg (16.26lb) |
|
|
Primary Port Speed |
10 Gigabit |
|
|
Number of Ports |

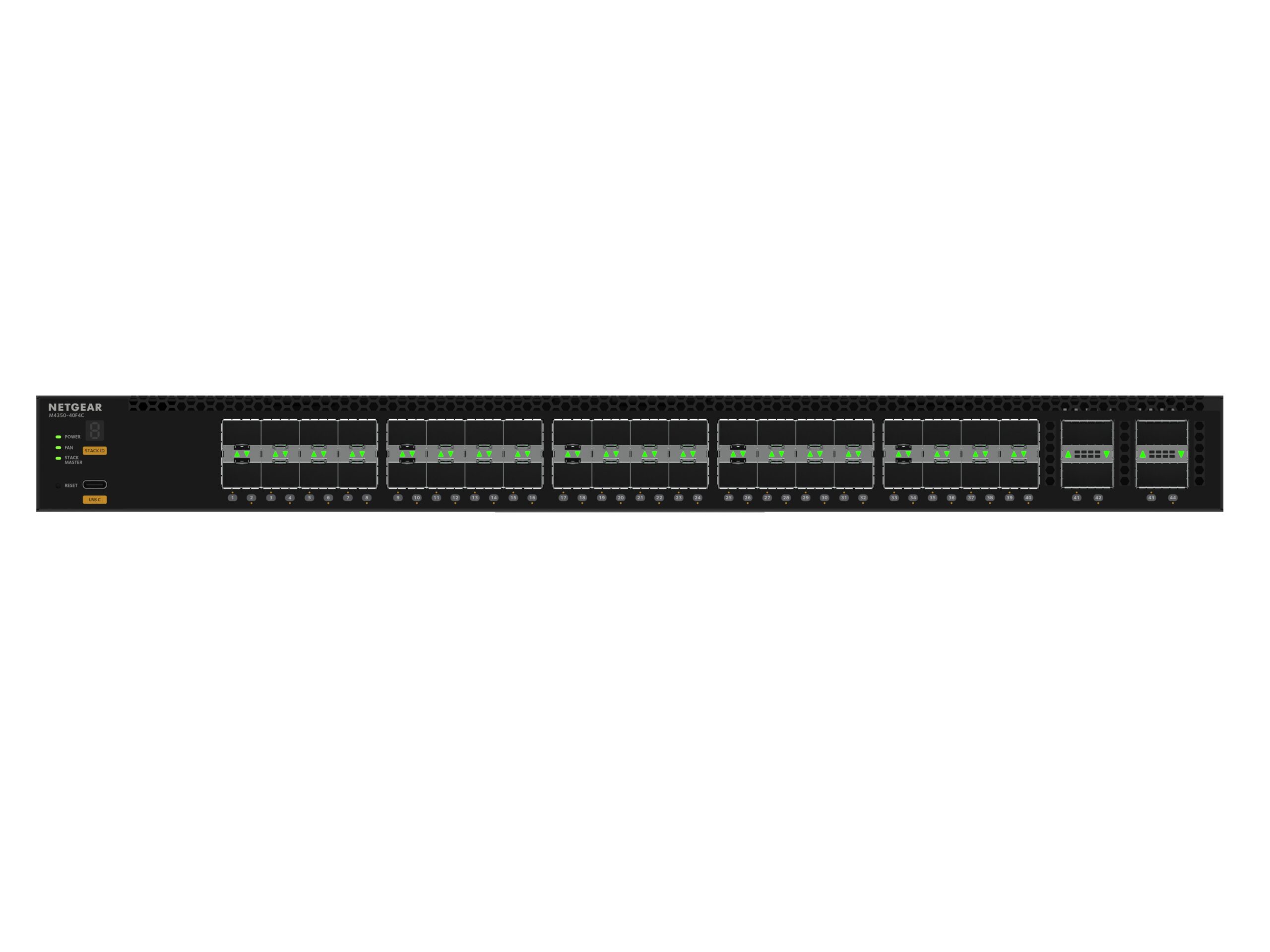

44 (40 x 10G SFP+, 4 x 100G QSFP28) |
|
|
IGMP Support |
Enhanced (NETGEAR IGMP Plus™) |
|
|
Jumbo Frame Support |
Yes, up to 12kb |
|
|
AVB Support |
Yes, included. |
|
|
Acoustics |
Quiet Mode 34.2dB@25ºC |
|
|
Power Consumption |
Max: 213.6W/728.21Btu/hr Standby without any port connection: 65W/221.12Btu/hr |
|
|
PSU Compatible Models |
APS600Wv3 APS1200Wv2 APS2000Wv2 |
|
|

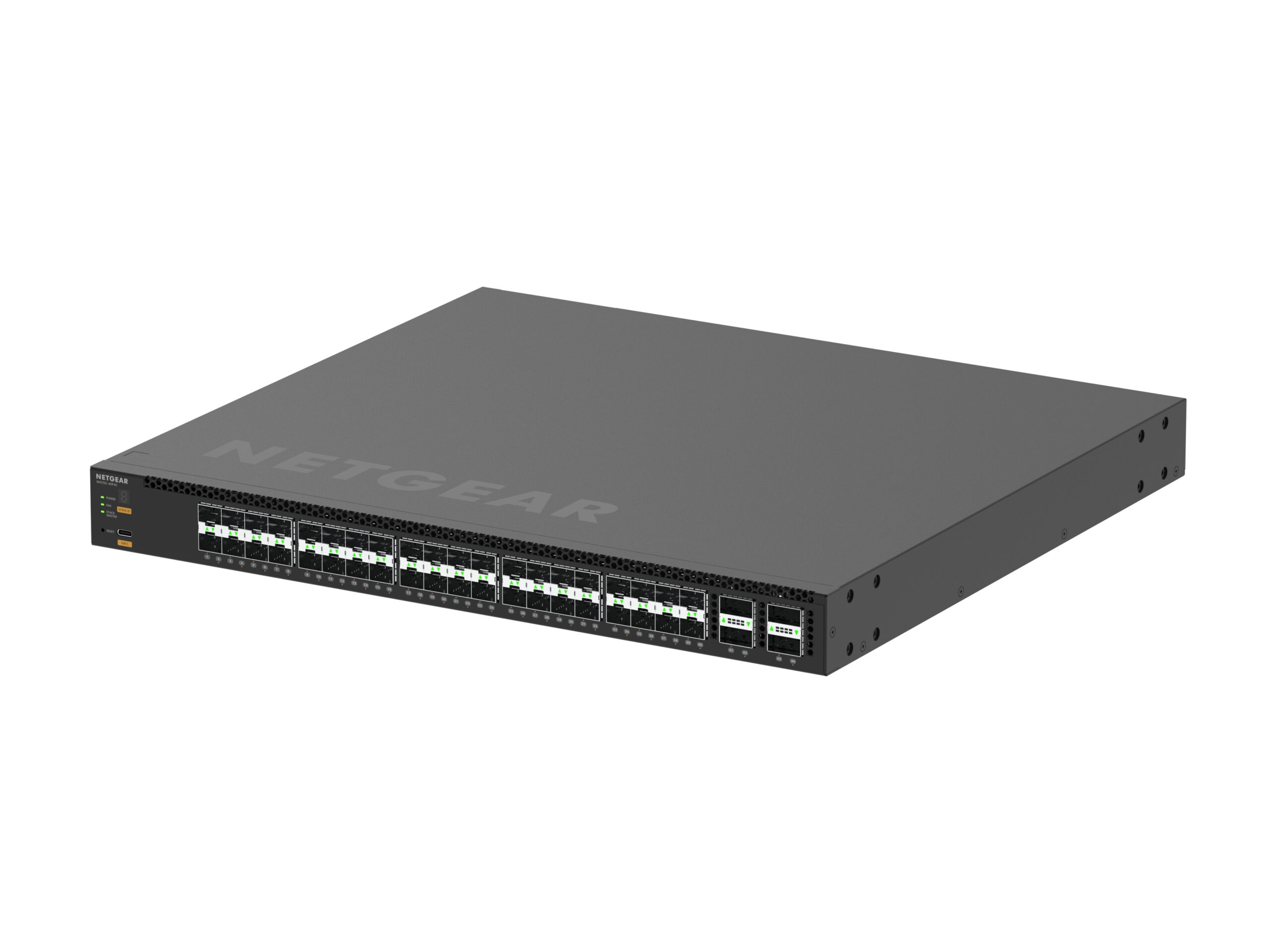

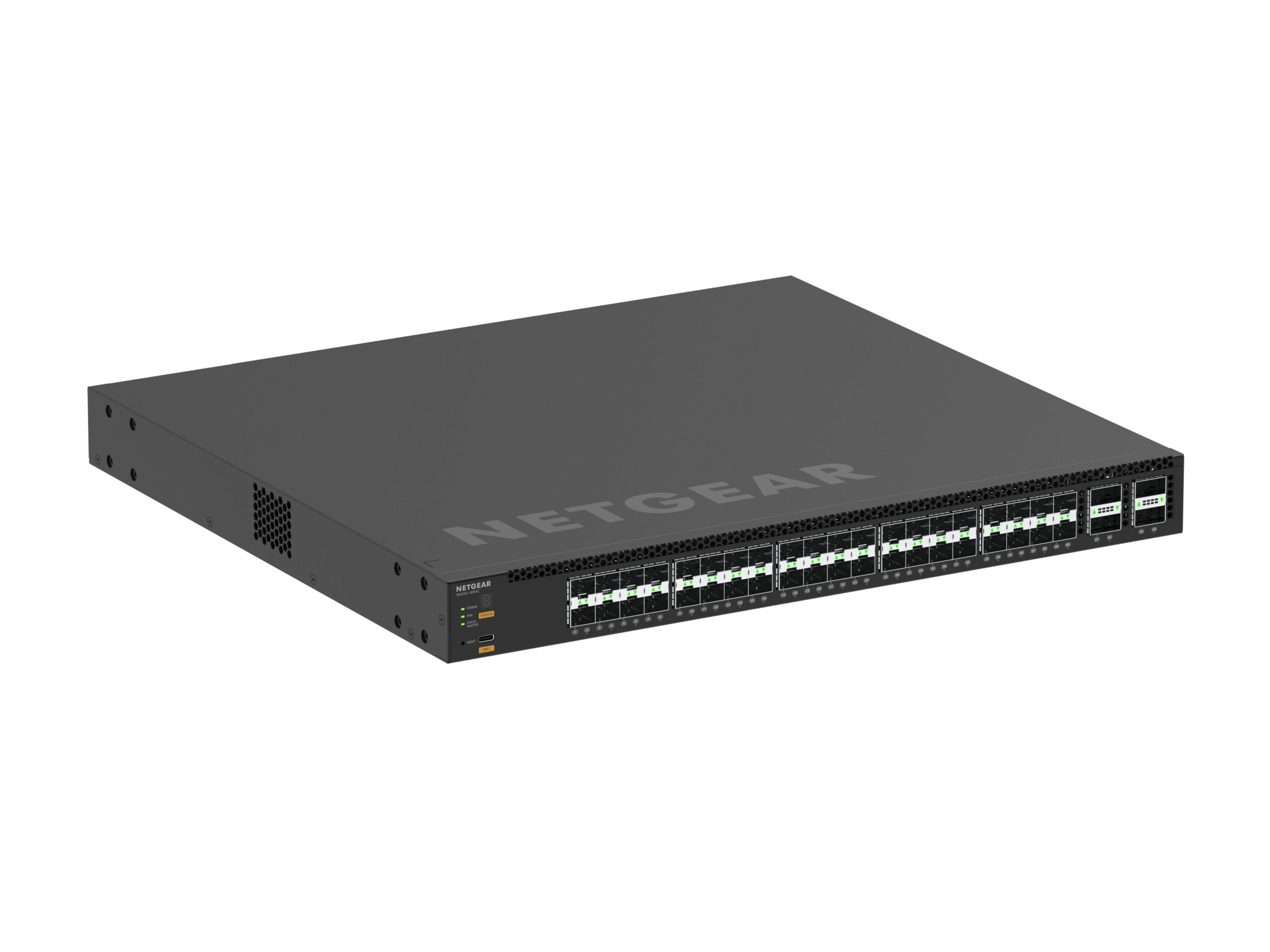

M4350-40F4C (XSM4344FC) |
1 |
|
|
Power cord(s) |
1 |
|
|
Console USB Type-C cable |
1 |
|
|
Rack-mounting standard bracket set |
1 |
|
|
Set of longer brackets for recessed mounting |
1 |
|
|
Rubber footpads for tabletop installation |
4 |
|
|
Installation guide |
1 |
