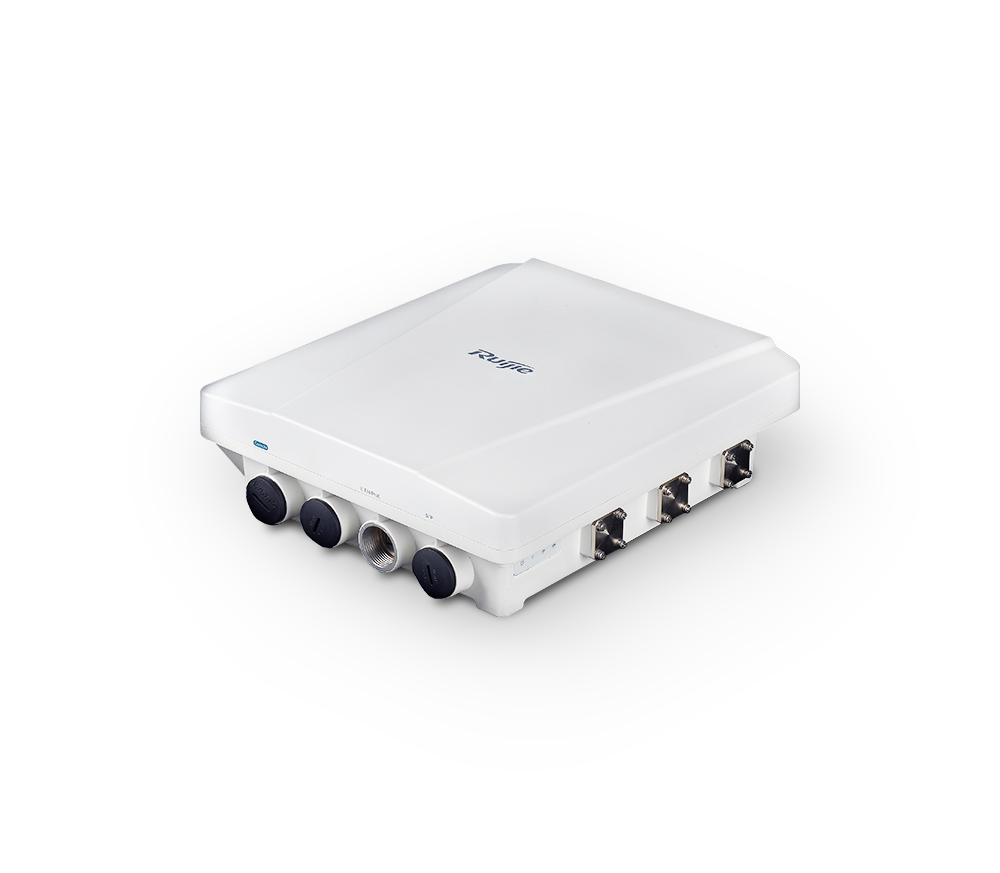

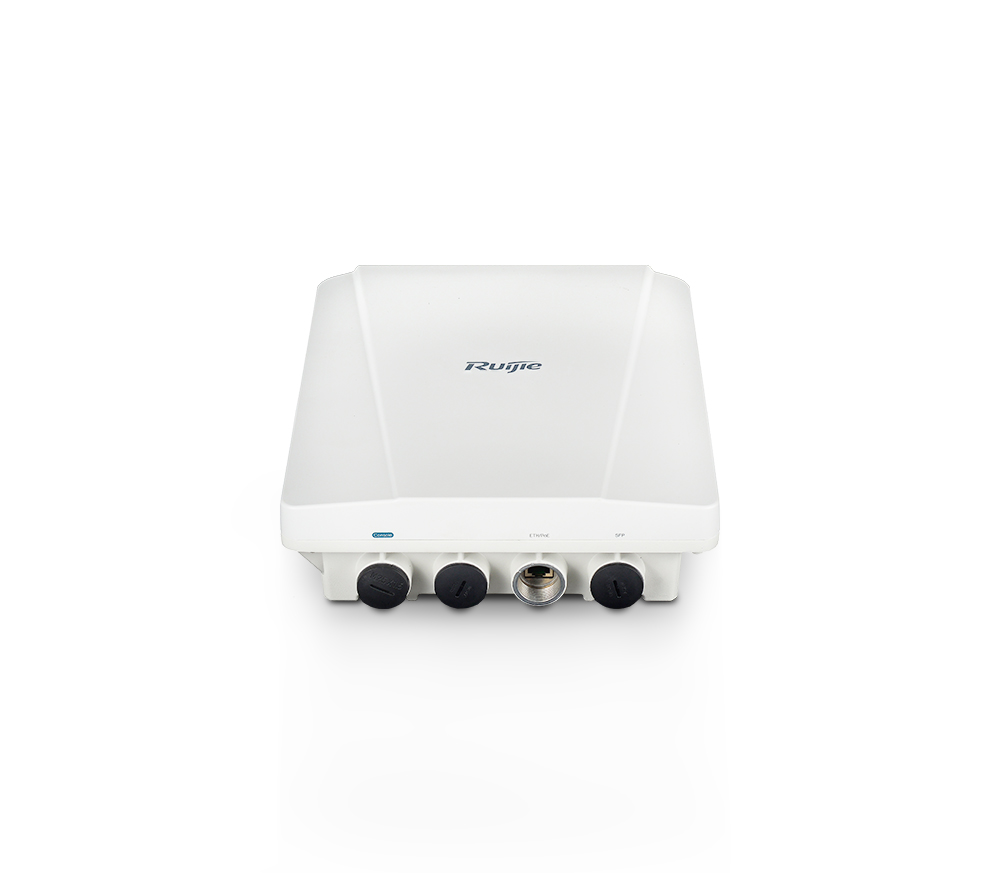

Outdoor AP
Model
RG-AP630(IODA)
Target Deployments
For big campus, wireless city, harbour, storage room, mine
Basic Specifications
Radio
Concurrent dual-radio dual-band
Protocol
802.11a/b/g/n/ac
Operating Bands
802.11b/g/n: 2.4GHz to 2.483GHz
802.11a/n/ac: 5.150GHz to 5.350GHz, 5.47GHz to 5.725GHz, 5.725GHz to 5.850GHz
(vary depending on countries)
Antenna
Built-in Omnidirectional Smart Antenna (support external/internal antenna switching)
Antenna Gain
4dBi
Max Throughput
450Mbps@2.4GHz
1.3Gbps@5GHz
1.75Gbps per AP
Spatial Streams
3
Modulation
OFDM: BPSK@6/9Mbps
QPSK@12/18Mbps
16-QAM@24Mbps
64-QAM@48/54Mbps
DSSS: DBPSK@1Mbps
DQPSK@2Mbps
CCK@5.5/11Mbps
MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM and 256QAM
Receiver Sensitivity
11b: -99dBm(1Mbps), -93dBm(5.5Mbps), -90dBm(11Mbps)
11a/g:-93dBm(6Mbps), -85dBm(24Mbps), -82dBm(36Mbps), – 77dBm(54Mbps)
11n:-92dBm@MCS0, -73dBm@MCS7, -92dBm@MCS8, -73dBm@MCS15
11ac HT20: -90dBm (MCS0) , -63dBm (MCS9)
11ac HT40: -85dBm(MCS0) , -60dBm (MCS9)
11ac HT80: -82dBm(MCS0) , -58dBm (MCS9)
Maximum Transmit Power
27dBm
Note: The transmit power is configurable to up to 15dBm in 1dBm steps. The actual transmit power depends on local laws and regulations.
Adjustable Power
1dBm
IP Rating
IP67
Ports
Service Port
1 10/100/1000Mbps ETH1/PoE IN port (RJ-45 connector);
1 SFP port (combo with ETH1)
Management Port
1 Console Port(RJ45 or Bluetooth)
Power
Power Supply
PoE+ (802.3at)
Power Consumption
<25W WLAN Maximum clients per AP Up to 256 SSID capacity Up to 16 per radio Up to 32 per AP SSID hiding Support Configuring the authentication mode. Encryption mechanism and VLAN attributes for each SSID Support Remote Intelligent Perception Technology (RIPT) Support X-speed Support Intelligent load balancing based on the number of users or traffic Support STA control SSID/radio-based Bandwidth control STA/SSID/AP-based speed control Preference for 5GHz (band select) Support Wireless position tracking Support Dynamic Frequency Selection(DFS) Future Release Support Security PSK, Web, and 802.1x authentication Support Data encryption WPA (TKIP) , WPA2 (AES), WPA-PSK, and WEP (64 or 128 bits) QR code authentication Support SMS authentication Support PEAP authentication Support Data frame filtering Whitelist, static/dynamic blacklist User isolation Support Rogue AP detection and countermeasure Support Dynamic ACL assignment Support WAPI Support RADIUS Support CPU Protection Policy (CPP) Support Network Foundation Protection Policy (NFPP) Support Wireless Intrusion Detection System(WIDS) Support Wireless Intrusion Prevention System (WIPS) Support Routing IPv4 address Static IP address or DHCP reservation IPv6 CAPWAP tunnel Support ICMPv6 Support IPv6 address Manual or automatic configuration Multicast Multicast to unicast conversion Management and Maintenance Network management SNMP v1/v2C/v3, Telnet, SSH, TFTP, and FTP and web management Visualized wireless heat map analysis Support (need to integrate with SNC) Real-time spectrum analysis Support (need to integrate with SNC) Fault detection and alarm Support Cloud AC management Support Statistics and logs Support FAT/FIT switching The AP working in FIT mode can switch to the FAT mode through the RG-WS wireless AC. The AP working in FAT mode can switch to the FIT mode through a local console port or Telnet. External Characteristics Lock Support LED Indicators Power status and WDS signal strength Relevant Standard Wi-Fi Alliance Certification Support Safety Standard GB4943, UL/CSA 60950-1, EN/IEC 60950-1, EN/IEC 60950-22 EMC Standard GB9254-2008, EN301 489, EN55022, FCC Part15 Health Standard FCC Bulletin OET-65C ,EN 50385, IC Safety Code 6 Radio Standard FCC Part15,EN300328, EN301893 Vibration Standard GB/T 2423 Dimensions (W x D x H) (mm) 276 × 246 × 90 Specifications Weight <2.5kg Work Environment Temperature Operating Temperature: -40°C to 55°C Storage Temperature: -40°C to 70°C Humidity Operating Humidity: 5% to 95% (non-condensing) Storage Humidity: 5% to 95% (non-condensing) Installation Mode Wall/pole-mount installation Outdoor Antennas Model RG-ANTx3-2400D RG-ANTx3-5800D RG-ANTx3-2400&5800(O) Type of External Antenna Directional Directional Omnidirectional Electrical Specifications Frequency range 2.4 to 2.483 GHz 5.125 to 6.100 GHz 2.4 to 2.5 GHz; 5.125 to 6.100 GHz Gain 3 × 15 dBi 2 × 19 dBi (vertical) + 16 dBi (dual inclined planes) 8 dBi Horizontal beamwidth 65° 21° 360° Vertical beamwidth 16° 16° 17° Front-to-back ratio ≤ -25 dB ≤ -25 dB ≤ -25 dB VSWR ≤ 1.5 ≤ 1.5 ≤ 1.5 Polarization 2*VP（vertical polarization）+1*HP(horizontal polarization) ±45° and vertical polarization VP（vertical polarization） Input impedance 50 ohms 50 ohms 50 ohms Mechanical Specifications Mounting mode Pole mounting (pole diameter 30 to 50 mm) Pole mounting (pole diameter 50 to 120 mm) Pole mounting (pole diameter 40 to 70 mm) Temperature range -40°C to +60°C -40°C to +60°C -40°C to +60°C Unit weight 2.3 kg 1.3 kg 1.2 kg Dimensions 400 × 240 × 35 mm (L × W × H) 380 × 380 × 33 mm (L × W × H) Φ145 × 330 mm Connector 3 × N-K 3 × N-K 6 × N-K
