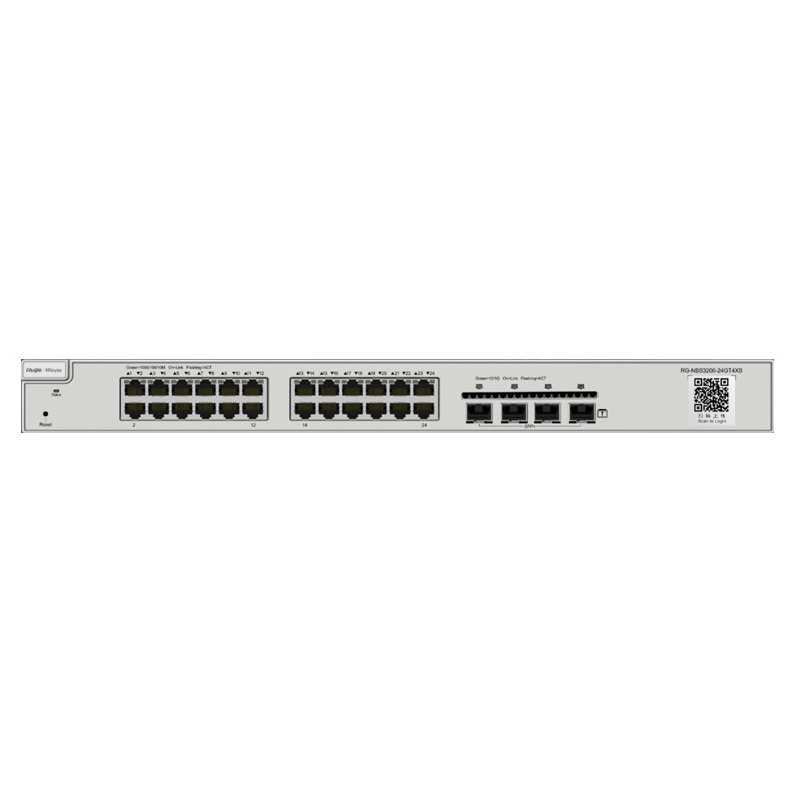

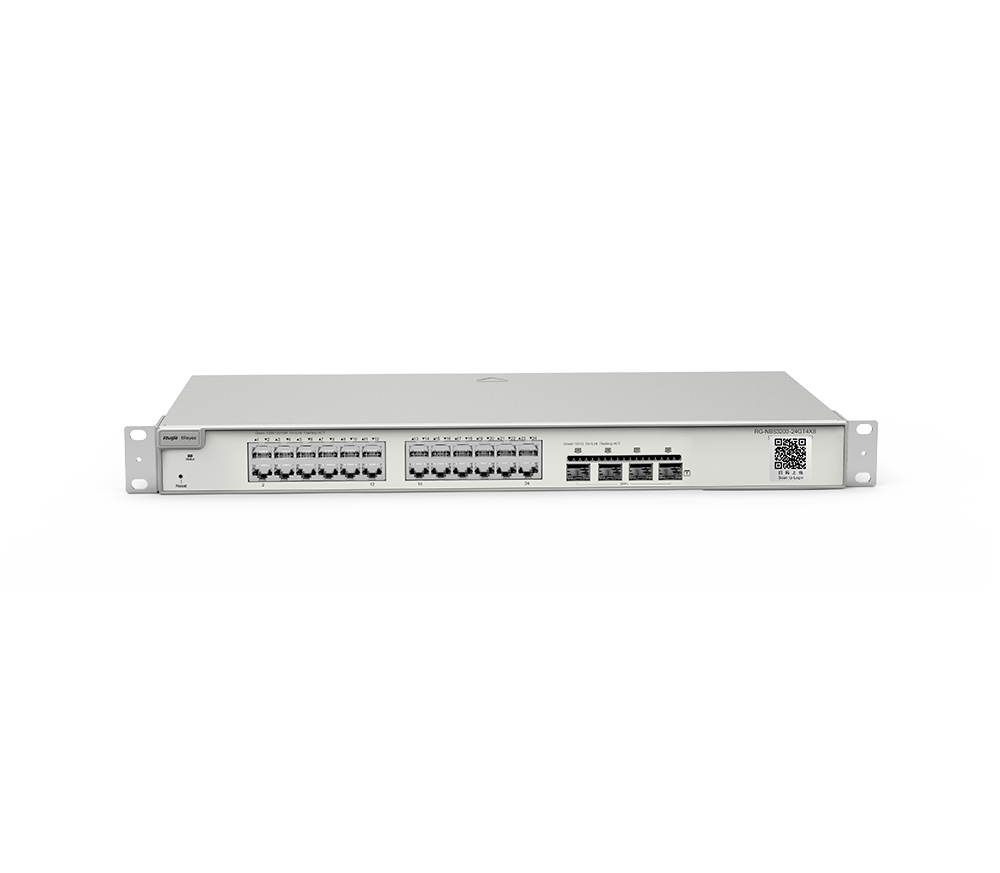

Ruijie Reyee RG-NBS3200-24GT4XS-P 24-Port Gigabit L2 Managed POE+ Switch with SFP+, 370W PoE power budget

Home›Network›Ruijie›Reyee›Switches (RY)›Ruijie Reyee RG-NBS3200-24GT4XS-P 24-Port Gigabit L2 Managed POE+ Switch with SFP+, 370W PoE power budget
Ruijie Reyee RG-NBS3200-24GT4XS 24-Port Gigabit L2 Managed Switch with SFP+ ฿15,000
Ruijie Reyee RG-NBS5100-24GT4SFP 24-Port Gigabit L2+ Managed Switch ฿15,060
Write your comment

L2 10G Uplink Cloud Managed Switch
RG-NBS3200-24GT4XS-P
24 10/100/1000Base-T ports (support PoE and PoE+), 4 SFP+ 10GBase-X ports, 370W PoE power, support unified management via app and Ruijie Cloud platform
RG-NBS3200 series switch is a new generation of high-performance, strong security and integrated multi-service layer 2 Ethernet switch launched by Reyee. This series of switches adopts an efficient hardware architecture design, providing larger entry specifications and faster Hardware processing performance, more convenient operation experience. The RG-NBS3200 series provides flexible Gigabit access to 10 Gigabit uplink ports. The entire series of switches all have 4-port 10 Gigabit optical and high-performance port uplink capabilities.

In Stock

Sku:RG-NBS3200-24GT4XS-P

฿31,000

Wishlist
Compare
Ruijie
Categories:

Product Specification

Ports : 24 10/100/1000Base-T ports (support PoE and PoE+) + 4 SFP+ 10GBase-X ports

Maximum output power per PoE port : 30W

Maximum PoE output power per switch : 370W

Switching capacity : 336Gbps

Packet forwarding rate : 96Mpps

MAC address : Support static MAC address, MAC address filtering

MAC address table size : 16K

Number of VLANs : 4094

Link aggregation : Support Static Link Aggregation / Not Support Dynamic Link Aggregation (LACP)

Port mirroring : Many-to-one mirroring

Spanning tree : STP, RSTP

LLDP : Support

ACL : IP standard ACL / MAC extended ACL / IP extended ACL / Port ACL for Layer 2 ports (physical port / AP)

QoS : Port-based speed limit (ingress/egress)

Security : Port protection / Hardware CPP

Management : Web management, Ruijie Cloud or Ruijie Cloud app management

DHCP : DHCP snooping

EEE : Support

Dimensions : 440×357.6×43.6mm

PoE : 24 Base-T ports (support PoE and PoE+) / Maximum PoE / PoE+ output power per switch: 370W / Maximum output power per port: 30W

Temperature : Operating temperature: 0 C – 50C / Storage temperature: -40 C – 70C

Humidity : Operating humidity: 10% ~ 90% RH / Storage humidity: 5% ~ 90% RH
