4K UHD Resolution
Equipped with cutting-edge image processor, Vision+ 4KN outputs 4Kp60/59.94 video for clear, sharp, lifelike images even in low-light environments.
NDI®HX /3G-SDI/HDMI 2.0/USB-C Available

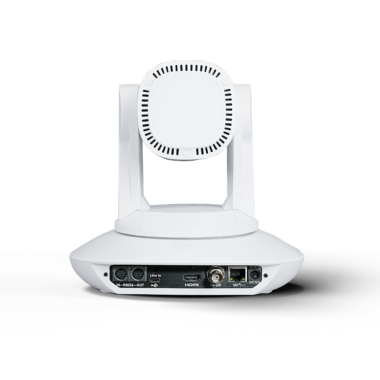

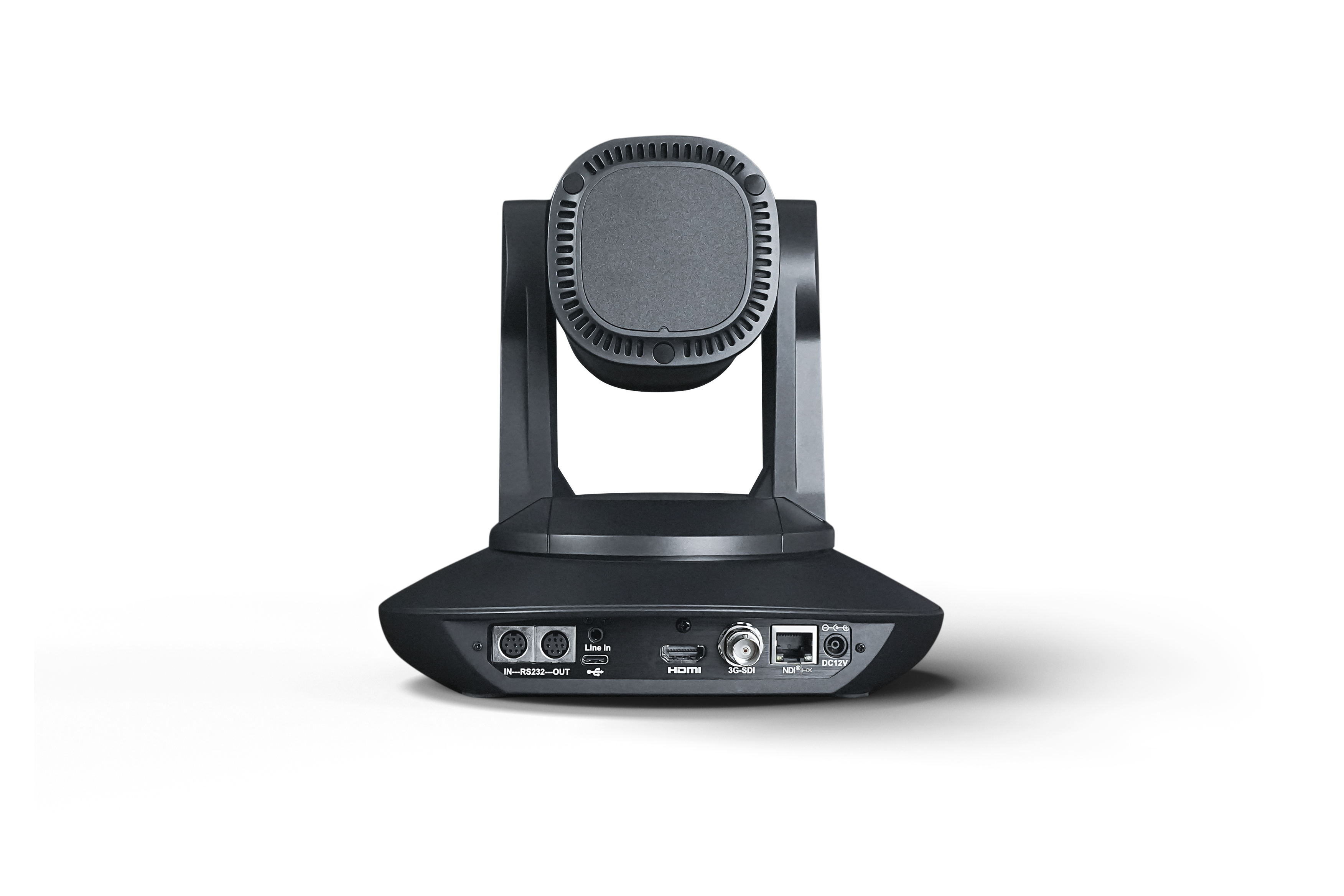

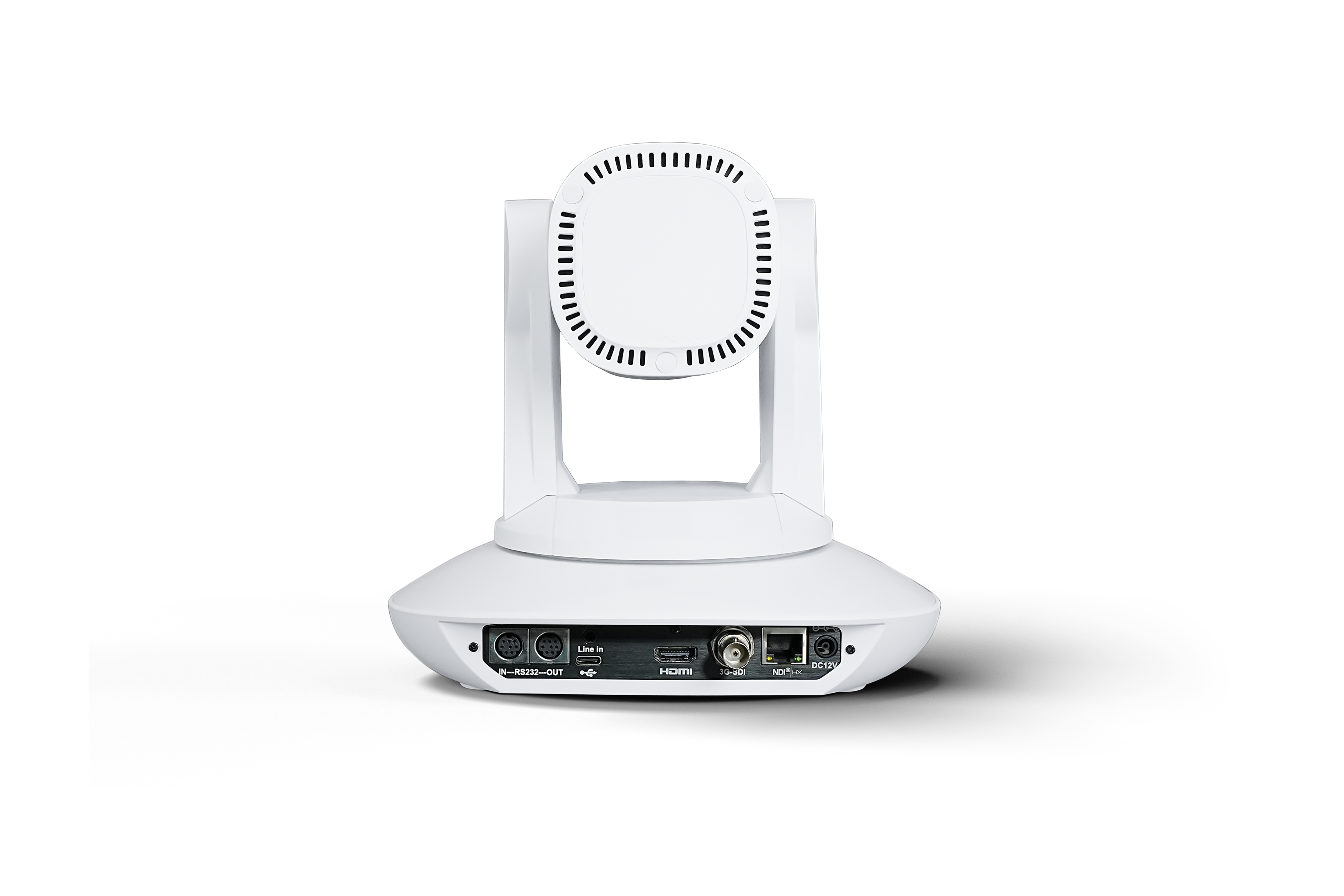

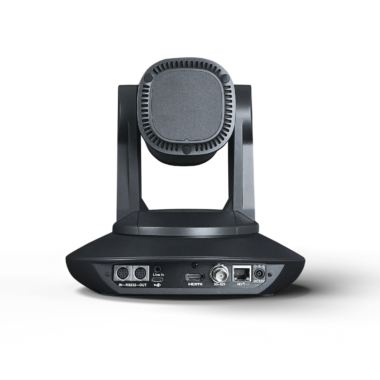

Vision+ 4KN supports NDI®HX and HDMI2.0 outputs at 4Kp60/59.94 simultaneously, 3G-SDI(Level A and B) outputs 1080p60/59.94, and USB-C output up to 4K30.
NDI® and NDI® HX Support
The Explore PTZ camera supports both NDI® and NDI®|HX, offering flexible, high-efficiency video streaming options. NDI® provides high-quality, low-latency video over IP networks, while NDI®|HX optimizes bandwidth usage for smoother performance in network-constrained environments. This dual support ensures robust and adaptable connectivity for diverse broadcasting needs.
FreeD Integration Unlocks Immersive Virtual Productions
FreeD is a protocol that enables precise transmission of Pan, Tilt, Zoom, and Focus (PTZF) data directly from the camera to tracking system. Widely supported by most virtual set systems, FreeD makes virtual productions easier than ever. The Vision+ SE seamlessly integrates FreeD technology, empowering users to explore dynamic shooting angles and perspectives, ideal for versatile real-world and virtual-world applications. Vision+ SE’s broad compatibility with industry-leading virtual set systems like Brainstorm, Vizrt, Zero Density, Aximmetry, Unreal Engine, and VSet3D ensures a smooth workflow for all your virtual production needs.
Tally Lights for Effortless Production Cues
Tally light, a visible indicator typically in red LED, illuminates to signal when the camera is live and actively feeding its image output.
Vision+ 4KN features built-in tally lights that work with NDI. This intuitive feature receives signals directly from NDI, without the need for separate tally control systems. A bright LED illuminates to clearly indicate which camera is currently on-air (“Program”) and which is lined up for the next transition (“Preview”).
3.5mm Stereo Line-in
The Vision+ 4KN features a 3.5mm stereo line-in audio interface, allowing for direct connection of external audio sources. This ensures high-quality, synchronized audio alongside your video feed, enhancing overall production quality. The line-in supports various audio devices, providing flexibility and convenience for professional broadcasting and video production.
12X/20X/30X Optical Zoom
The Vision+ 4KN offers 12X, 20X, and 30x optical zoom options with FOVs of 80.5°, 61°, and 60.5° respectively. Its advanced focusing algorithm ensures rapid and accurate focus even during zoom or movement.
Native AI-Based Auto-Tracking
The Vision+ 4KN features AI-based auto-tracking, automatically following subjects to enhance ease of use and capture the moments flawlessly.
Specifications

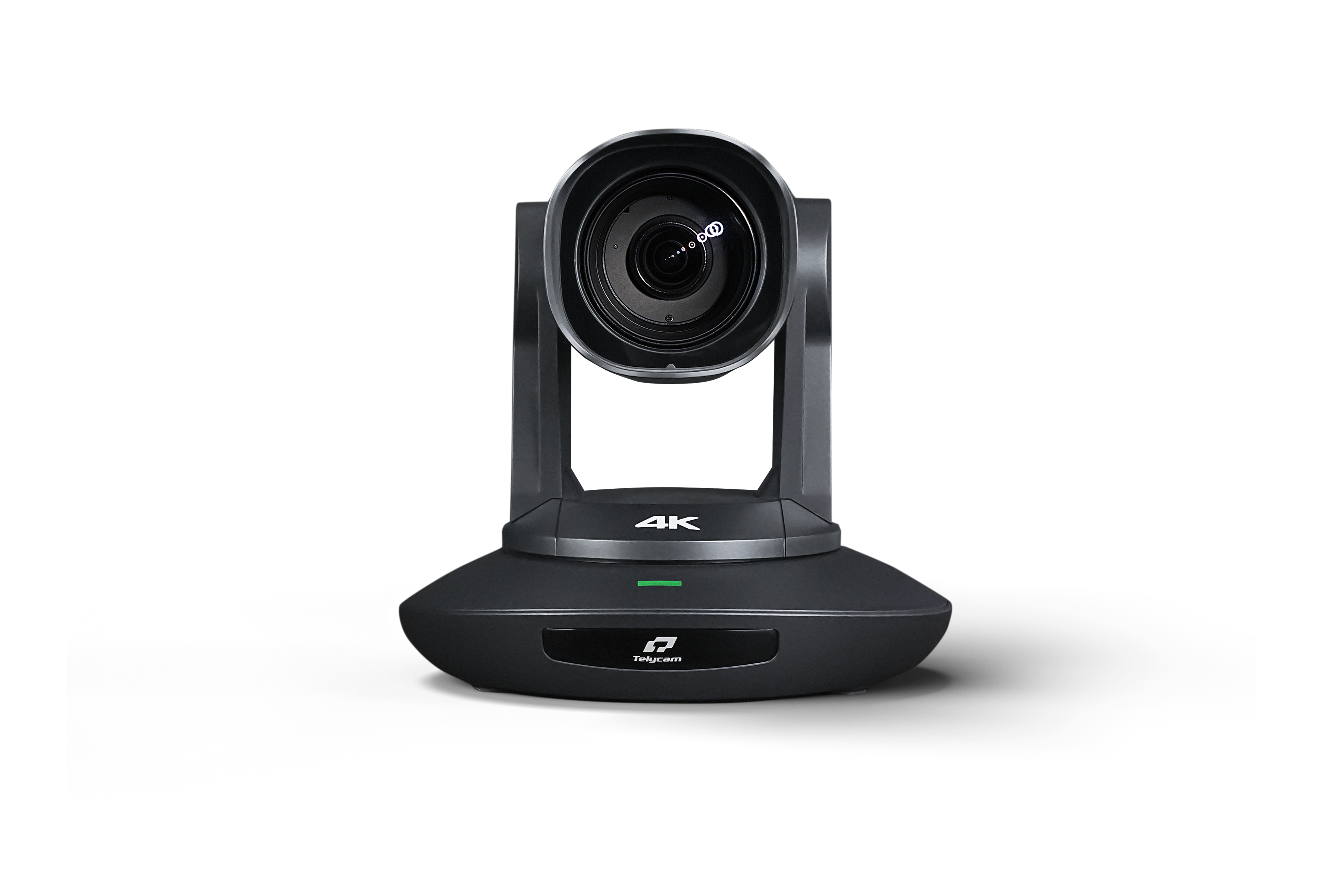

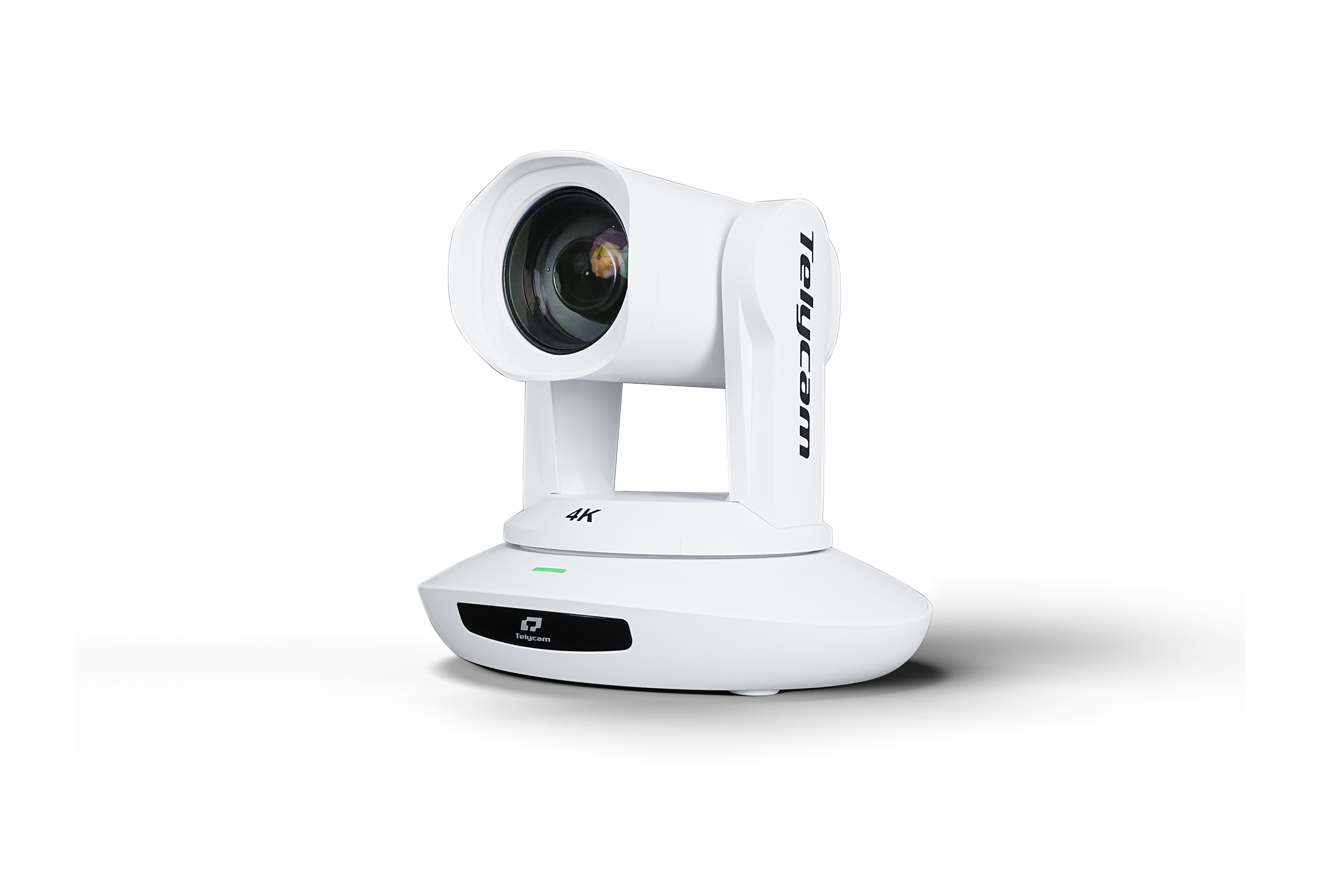

Vision+ 4KN 30x
• 1/1.8 inch,
9MP UHD CMOS sensor
• 30X optical zoom
• Lens: f= 6.91~214.64mm,
F1.35~F4.6
• Horizontal View Angle: 63°(Wide)~2.1°(Tele)
• Vertical Viewing Angle: 34.14°~1.12°
• Diagonal Viewing Angle: 67.08°~2.27°
• Minimum Working Distance: 1.5m
• S/N Ratio: ≥50dB
