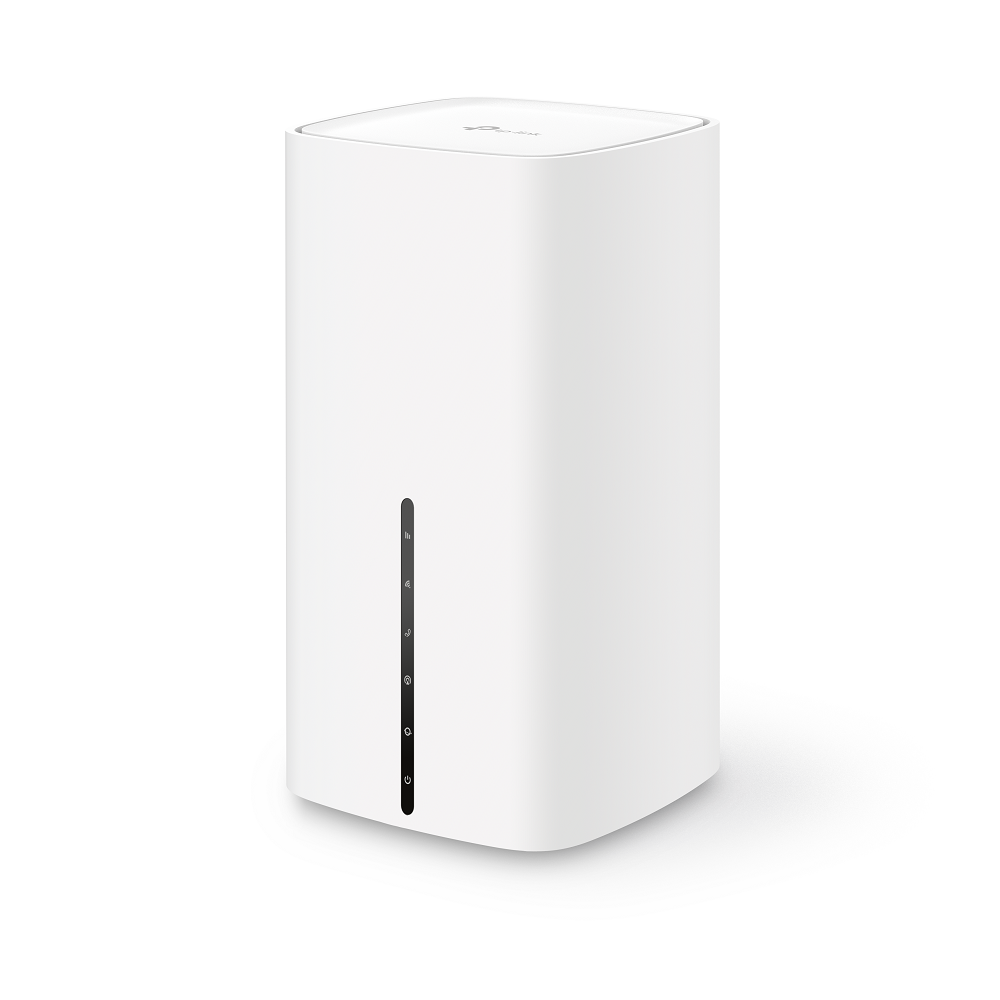

TP-LINK (NX510V) 5G AX3000 WiFi6 Telephony Router 2+2 Dual-Band เราเตอร์ใส่ซิม 5G ประกันศูนย์ไทย
| HARDWARE FEATURES | |
|---|---|
| CPU | 1 GHz Dual-Core CPU |

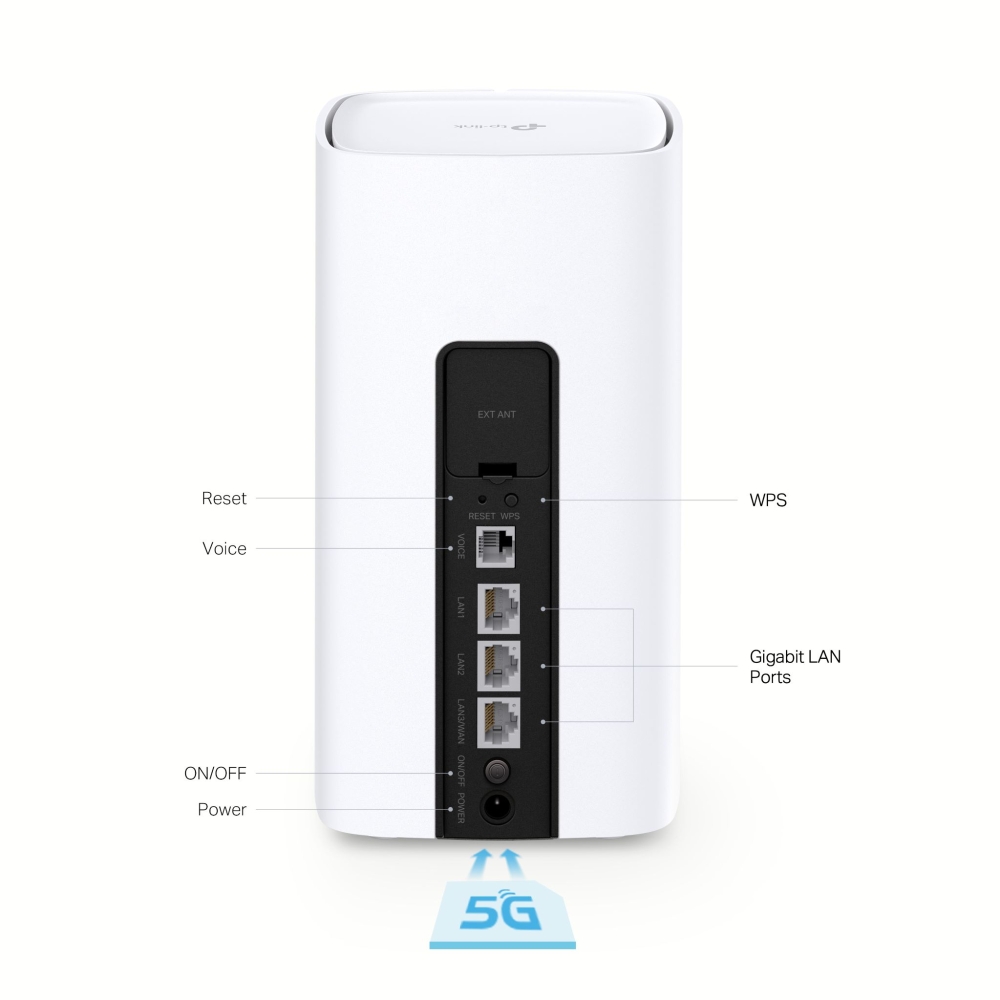

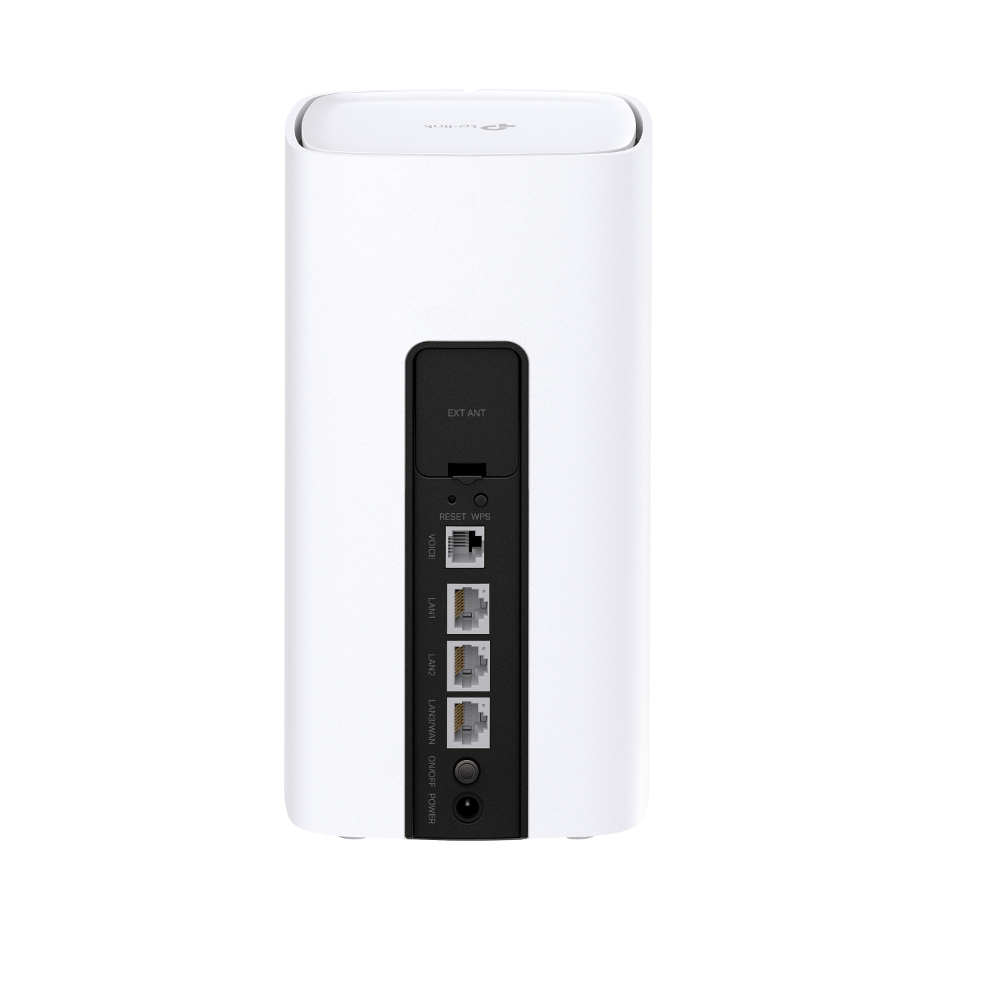

| Interface | 3× 10/100/1000 Mbps RJ45 LAN Ports (1 port for WAN/LAN auto-sensing) |
| Button | 1 RESET/WIFI multiplex button & 1 WPS button |
| External Power Supply | Output: 12V/2A Input: 100-240V~50-60Hz 0.8A |
| Dimensions ( W x D x H ) | 3.9 × 3.9 × 7.56 in (99 × 99 × 192mm) |
| Antenna | Internal WIFI antennas; optional Internal/external LTE/5G antennas |
| WIRELESS FEATURES | |
|---|---|
| Wireless Standards | IEEE 802.11a/n/ac/ax 5GHz, IEEE 802.11b/g/n/ax 2.4GHz |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | 5G SA : 2.4 Gbps(downstream) / 900 Mbps(upstream) 5G NSA: 3.4 Gbps(downstream) / 550 Mbps(upstream) LTE: 1.6 Gbps(downstream) / 200 Mbps(upstream |
| Transmit Power | CE:≤20dbm(2.4GHz);≤23dbm(5G band1/band2); ≤30dbm(5G band3) RCM: ≤30dbm(2.4GHz);≤23dbm(5G band1/band2); ≤30dbm(5G band3/band4) |
| Wireless Security | WPA/WPA2-PSK/WPA3 encryption |
| Network Type | 5G: N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N77/N78 4G: FDD-LTE:B1/B3/B5/B7/B8/B20/B28 TDD-LTE: B38/B40/B41/B42/B43 3G: DC-HSDPA, HSPA+, HSDPA, HSUPA,WCDMA B1/B5/B8 |
| Mesh Technology | 802.11k/v/r, support EasyMesh |
| SOFTWARE FEATURES | |
|---|---|
| Working Mode | 5G/4G/3G, Wi-Fi Router |
| Multi SSID | 3 more 2.4GHz/5GHz Network |
| Features | Parental Controls, QoS (Quality of Service), Address Reservation, Port Forwarding, Dynamic DDNS, SIM Management,SMS, Cloud Upgrade, EasyMesh , VoLTE, IPTV, IPv6, NAT Forwarding, Firewall, LED Control, Network Diagnosic, CWMP, SNMP, Traffic Statistic, WPS,1024-QAM, OFDMA, IPSEC VPN, WEB Remote Control |
| WAN Type | Dynamic IP/Static IP/PPPoE/L2TP/PPTP |
| Protocols | Supports IPv4 and IPv6 |
| OTHERS | |
|---|---|
| Certification | CE, RoHS |
| Package Contents | 5G AX3000 Wifi6 Telephony Router NX510v 1 RJ45 Ethernet Cable 1 Power Adapter 1 RJ11 Cable 1 Quick Installation Guide |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1,10, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0 browers or higher. |
| Environment | Operating Temperature: 0°C~40°C (32°F ~104°F) Storage Temperature: -40°C~70°C (-40°F ~158°F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
