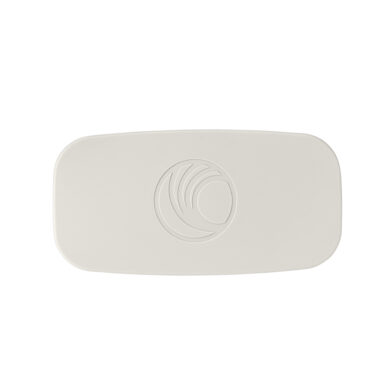

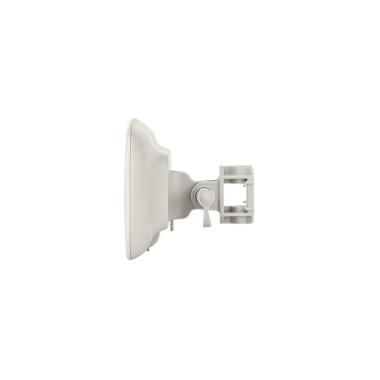

Cambium ePMP Force 180

SPECTRUM
Channel Spacing
Configurable on 5 MHz increments
Frequency range
5 GHz: 4910 – 5970 MHz (exact frequencies as allowed by local regulations)
Channel Width
5 | 10 | 20 | 40 MHz
INTERFACE
MAC (Media Access Control) Layer
Cambium Proprietary
Physical Layer
2×2 MIMO/OFDM
Ethernet Interface
10/100/1000BaseT, Compatible with Cambium PoE pinouts (V+ = 7 & 8, Return = 4 & 5) and Standard PoE pinouts (V+ = 4 & 5, Return = 7 & 8)
Protocols Used
IPv4/IPv6 (Dual Stack), UDP, TCP, ICMP, SNMPv2c, NTP, STP, IGMP, SSH
Network Management
IPv4/IPv6, HTTPs, SNMPv2c, SSH, Cambium Networks CnMaestro™
VLAN
802.1Q with 802.1p priority
PERFORMANCE
ARQ
Yes
Nominal Receive sSnsitivity (w/FEC) @ 200MHz Channe
MCS0 = -93 dBm to MCS15 = -72 dBm (per branch)
Nominal Receive Sensitivity (w/FEC) @ 40MHz Channel
MCS0 = -90 dBm to MCS15 = -69 dBm (per branch)
Modulation Levels (Adaptive)
MCS0 (BPSK) to MCS15 (64QAM 5/6)
Quality of Service
Three level priority (Voice, High, Low) with packet classification by DSCP, COS, VLAN ID, IP & MAC Address, Broadcast, Multicast and Station Priority
LINK BUDGET
Transmit Power Range
17 to +30 dBm (combined, to regional EIRP limit) (1 dB interval)
Integrated Antenna Peak Gain
16 dBi
Maximum Transmit Power
30 dBm combined (subject to regional regulatory restrictions)
PHYSICAL
Antenna Connection
Integrated Antenna
Surge Suppression
2 Joule Integrated
Environmental
IP55
Temperature
-30°C to +60°C (-22°F to +140°F)
Weight
0.50 kg (1.1 lb.) (includes mounting bracket)
Wind Survival
145 km/hour (90 mi/hour) with antenna
Dimensions (h x w x d)
12.4 x 25.1 x 11.9 cm (4.9 x 9.9 x 4.7 in) – with mounting bracket attached
Pole Diameter Range
1 – 1.6 in (2.5 – 4.1 cm) with included clamp ; up to 2.25 in (5.7 cm) with larger clamp
Power Consumption
10 W Maximum, 5 W Typical
Input Voltage
10 to 30 V
SECURITY
Encryption
128-bit AES (CCMP mode)
CERTIFICATIONS
FCCID
Z8H89FT0015
Industry Canada Cert
109W-0015
CE
5.4 GHz: EN 301 893 V2.1.1 5.8 GHz: EN 302 502 V2.1.1
PARAMETER
Frequency Range
4910 – 5970 MHz
Antenna Type
Integrated
Typical Gain
16 dBi
3db Beamwidth-Azimuth
15°
3db Beamwidth-Elevation
30°
Polarization(s)
Dual Linear, H/ V
Front-to-Back Isolation
>20 dB
Cross Polarization
15 dB
