SPECTRUM
Channel Spacing
Configurable on 5 MHz increments
Frequency Range
5 GHz Model: 4910 – 5970 MHz
Channel Width
5 | 10 | 20 | 40 MHz
INTERFACE
MAC (Media Access Control) Layer
Cambium Proprietary
Proprietary Physical Layer
2×2 MIMO/OFDM
Ethernet Interfaced
10/100/1000 BaseT, Compatible with Cambium PoE & Standard PoE pinouts
Protocols Used
IPv4/IPv6 (Dual Stack), UDP, TCP, ICMP, SNMPv2c, NTP, STP, IGMP, SSH
Network Management
IPv4/IPv6, HTTPs, SNMPv2c, SSH, Cambium Networks CnMaestro™
VLAN
802.1Q with 802.1p priority
PERFORMANCE
ARQ
Yes
Nominal Receive Sensitivity (w/FEC) @20 MHz Channel
MCS0 = -92 dBm to MCS15 = -68 dBm (per branch)
Nominal Receive Sensitivity (w/FEC) @40 MHz Channel
MCS0 = -89 dBm to MCS15 = -65 dBm (per branch)
Modulation Levels (Adaptive)
MCS0 (BPSK) to MCS15 (64QAM 5/6)
Quality of Service
Three level priority (Voice, High, Low) with packet classification by DSCP, COS, VLAN ID, IP & MAC Address, Broadcast, Multicast and Station Priority
Transmit Power Range
-15 to +30 dBm (combined, to regional EIRP limit) (1 dB interval)
PHYSICAL
Surge Suppression
1 Joule Integrated
Environmental
IP55
Temperature
-30°C to +60°C (-22°F to +140°F) – with radome attached maximum temperature is +47°C (+116°F)
Weight
5 GHz Model: 2.3 kg (5.1 lbs)
Wind Survival
145 km/hour (90 mi/hour)
Dimensions (Dia x Depth)
47 cm x 28 cm (18.5 in x 11.2 in)
Pole Diameter Range
6.4 cm – 7.6 cm (2.5 in – 3 in)
Power Consumption
10 W Maximum, 5 W Typical
Input Voltage
10 to 30 V
SECURITY
Encryption
128-bit AES (CCMP mode)
CERTIFICATIONS
FCCID
5 GHz: Z8H89FT0015
Industry Canada Cert
5 GHz: 109W-0015
CE
5.4 GHz EN 301 893 V2.1.1 5.8 GHz EN 302 502 V2.1.1
Sold out

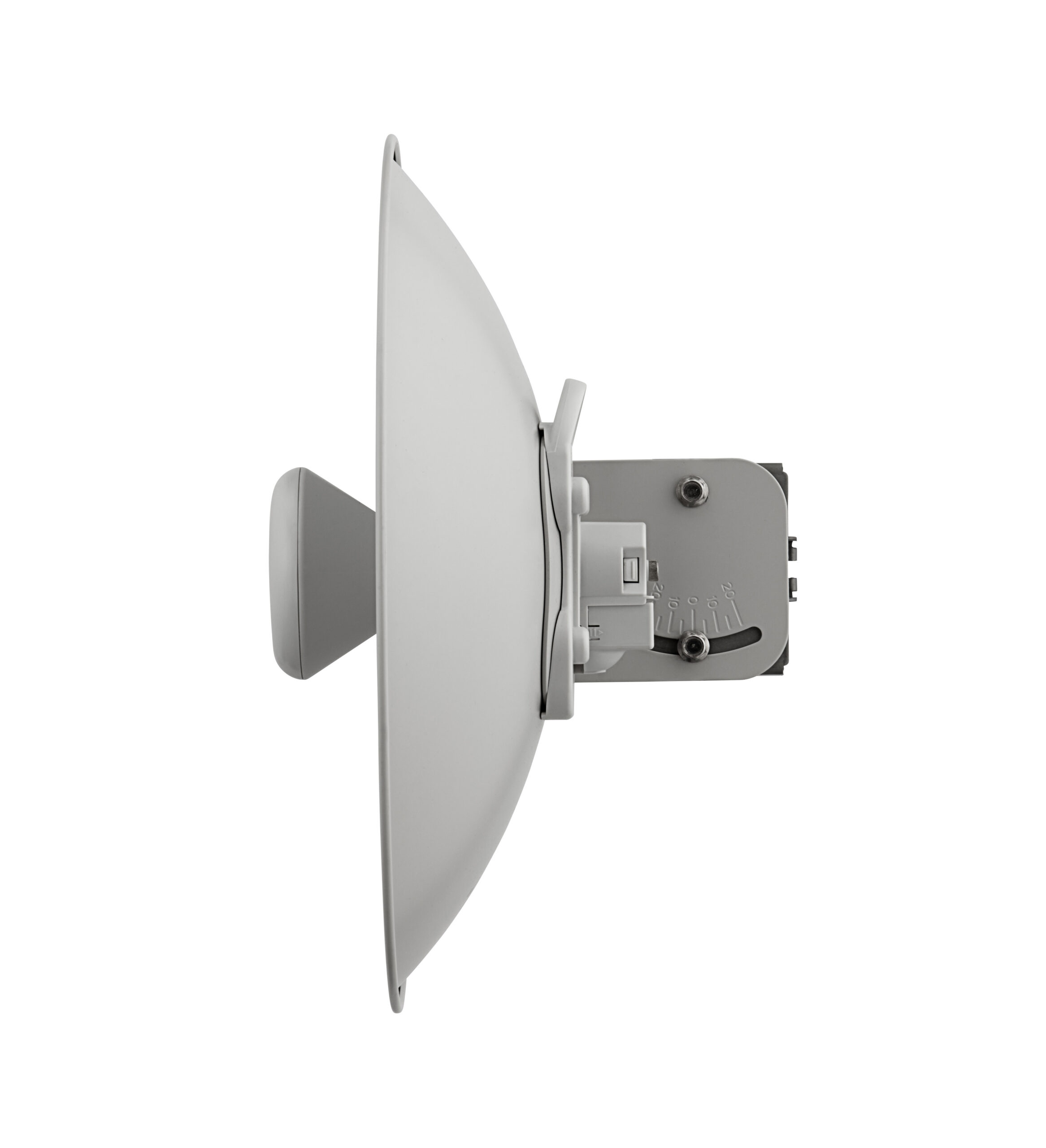

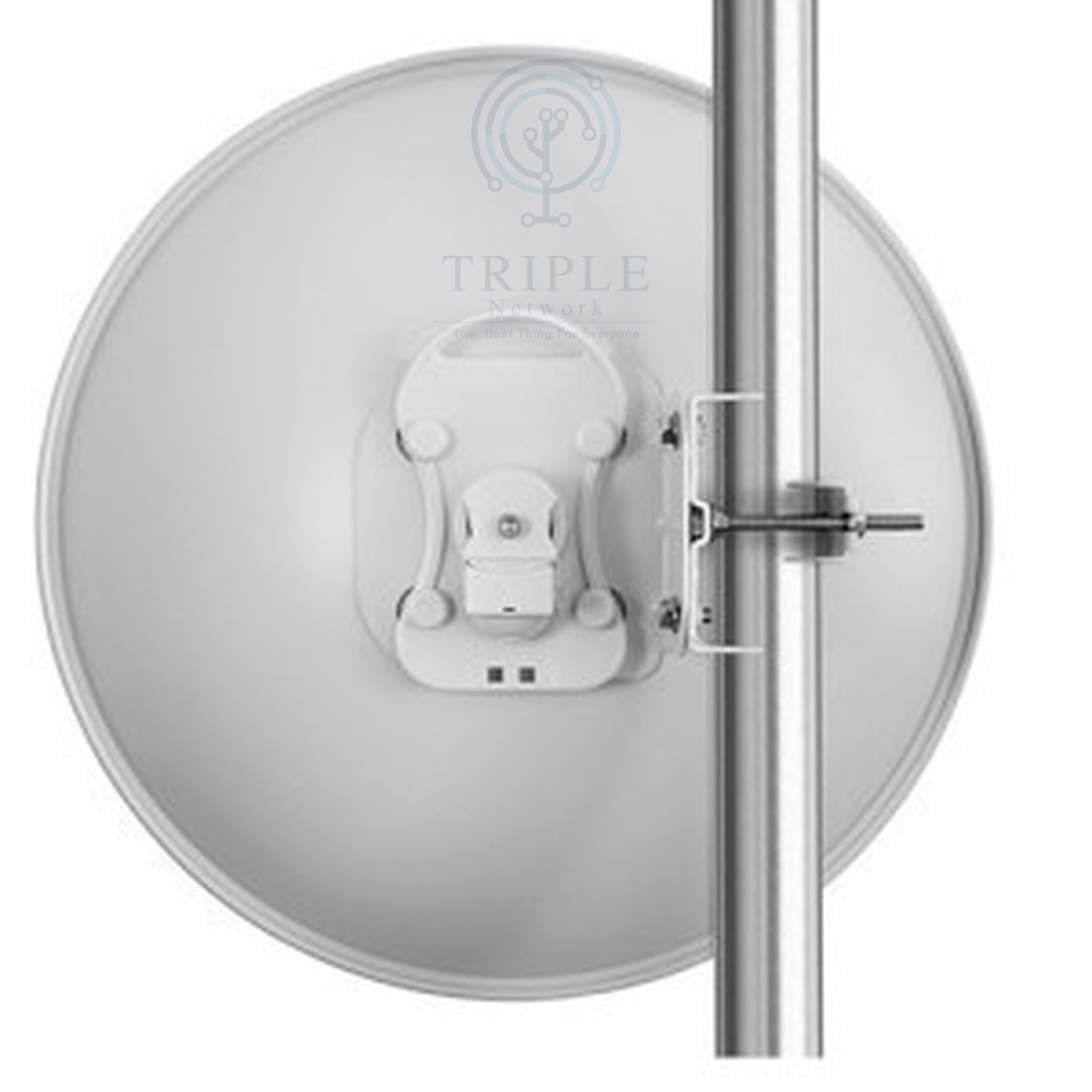

ePMP Force 200 5 GHz
Designed to operate in high interference environments
The ePMP™ Force 200 5 GHz adds a subscriber module and point-to-point (PTP) radio to ePMP’s 5 GHz line of products and provides superior throughput of over 200 Mbps of real user data. Long range deployment is enabled by the 25 dBi antenna. Configurable Modes of operation ensure robust adaptivity to both symmetrical and asymmetrical traffic while providing high performance and round-trip latency as low as 2 – 3 ms.
Out of stock
Original price was: ฿8,500.฿7,900Current price is: ฿7,900.
Out of stock
Facebook Comments Box
Brand
Cambium
Your custom content goes here. You can add the content for individual product
